Conceal_IPsec

Created: 4 min read

IPsec

as openvpn is one of the popular TLS/SSL based VPN services, StrongSwan is the IPsec based counterpart.

strongswan

  • is an open-source IPsec based VPN solution that comes with pretty much every Unix system.
  • is known for its high-performance, security and compatibility with other IPsec based VPN solutions.
  • supports a wide range of encryption and authentication algorithms, including AES, 3DES, and Blowfish, as well as SHA1, SHA256, and SHA384
  • is compliant with most of the IKE standards.

I will be using StrongSwan to connect to the IKE service with the pre-shared key extracted earlier

Client Configuration

Here are some good references on client configuration setup. I will refer to that. Linode tecmint

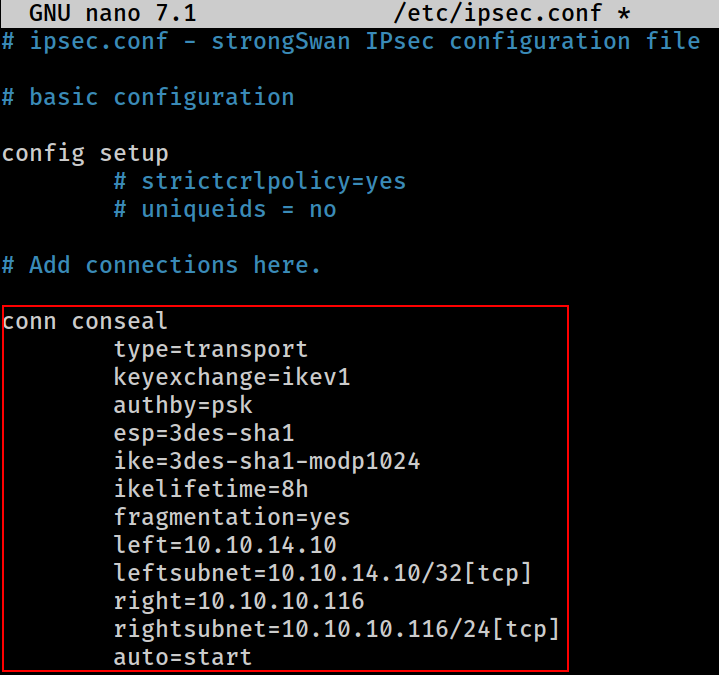

The configuration file is located at /etc/ipsec.conf Declare the connection, “conceal”, with:

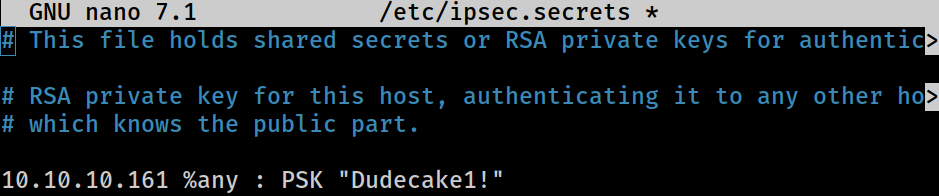

Now I need to add the extracted pre-shared key to the authentication file at /etc/ipsec.secrets 10.10.10.161 %any : PSK "Dudecake1!"

<HOST> USER : <AUTHENTICATION TYPE> <PASSWORD or KEY FILE>

This is the format

Connection

┌──(kali㉿kali)-[~/archive/htb/labs/conceal]
└─$ sudo ipsec start --nofork
Starting strongSwan 5.9.8 IPsec [starter]...
00[DMN] Starting IKE charon daemon (strongSwan 5.9.8, Linux 6.0.0-kali6-amd64, x86_64)
00[lib] providers loaded by openssl: default legacy
00[CFG] loading ca certificates from '/etc/ipsec.d/cacerts'
00[CFG] loading aa certificates from '/etc/ipsec.d/aacerts'
00[CFG] loading ocsp signer certificates from '/etc/ipsec.d/ocspcerts'
00[CFG] loading attribute certificates from '/etc/ipsec.d/acerts'
00[CFG] loading crls from '/etc/ipsec.d/crls'
00[CFG] loading secrets from '/etc/ipsec.secrets'
00[CFG]   loaded IKE secret for 10.10.10.161 %any
00[lib] loaded plugins: charon aesni aes rc2 sha2 sha1 md5 mgf1 random nonce x509 revocation constraints pubkey pkcs1 pkcs7 pkcs12 pgp dnskey sshkey pem openssl pkcs8 fips-prf gmp agent xcbc hmac kdf gcm drbg attr kernel-netlink resolve socket-default connmark stroke updown eap-mschapv2 xauth-generic counters
00[LIB] dropped capabilities, running as uid 0, gid 0
00[JOB] spawning 16 worker threads
charon (314786) started after 20 ms
06[cfg] received stroke: add connection 'conceal'
06[CFG] added configuration 'conceal'
08[cfg] received stroke: initiate 'conceal'
08[IKE] initiating Main Mode IKE_SA transport[1] to 10.10.10.116
08[ENC] generating ID_PROT request 0 [ SA V V V V V ]
08[net] sending packet: from 10.10.14.10[500] to 10.10.10.116[500] (236 bytes)
09[net] received packet: from 10.10.10.116[500] to 10.10.14.10[500] (208 bytes)
09[ENC] parsed ID_PROT response 0 [ SA V V V V V V ]
09[IKE] received MS NT5 ISAKMPOAKLEY vendor ID
09[IKE] received NAT-T (RFC 3947) vendor ID
09[IKE] received draft-ietf-ipsec-nat-t-ike-02\n vendor ID
09[IKE] received FRAGMENTATION vendor ID
09[enc] received unknown vendor id: fb:1d:e3:cd:f3:41:b7:ea:16:b7:e5:be:08:55:f1:20
09[enc] received unknown vendor id: e3:a5:96:6a:76:37:9f:e7:07:22:82:31:e5:ce:86:52
09[cfg] selected proposal: IKE:3DES_CBC/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024
09[ENC] generating ID_PROT request 0 [ KE No NAT-D NAT-D ]
09[net] sending packet: from 10.10.14.10[500] to 10.10.10.116[500] (244 bytes)
10[net] received packet: from 10.10.10.116[500] to 10.10.14.10[500] (260 bytes)
10[ENC] parsed ID_PROT response 0 [ KE No NAT-D NAT-D ]
10[ENC] generating ID_PROT request 0 [ ID HASH N(INITIAL_CONTACT) ]
10[net] sending packet: from 10.10.14.10[500] to 10.10.10.116[500] (100 bytes)
12[net] received packet: from 10.10.10.116[500] to 10.10.14.10[500] (68 bytes)
12[ENC] parsed ID_PROT response 0 [ ID HASH ]
12[IKE] IKE_SA transport[1] established between 10.10.14.10[10.10.14.10]...10.10.10.116[10.10.10.116]
12[IKE] scheduling reauthentication in 28010s
12[IKE] maximum IKE_SA lifetime 28550s
12[ENC] generating QUICK_MODE request 4041634572 [ HASH SA No ID ID ]
12[net] sending packet: from 10.10.14.10[500] to 10.10.10.116[500] (220 bytes)
11[net] received packet: from 10.10.10.116[500] to 10.10.14.10[500] (188 bytes)
11[ENC] parsed QUICK_MODE response 4041634572 [ HASH SA No ID ID ]
11[cfg] selected proposal: ESP:3DES_CBC/HMAC_SHA1_96/NO_EXT_SEQ
11[IKE] CHILD_SA transport{1} established with SPIs c4b7f593_i 6c3a4a30_o and TS 10.10.14.10/32[tcp] === 10.10.10.116/32[tcp]
11[ENC] generating QUICK_MODE request 4041634572 [ HASH ]
11[net] sending packet: from 10.10.14.10[500] to 10.10.10.116[500] (60 bytes)
13[net] received packet: from 10.10.10.116[500] to 10.10.14.10[500] (76 bytes)
13[ENC] parsed QUICK_MODE response 4041634572 [ HASH N(INIT_CONTACT) ]
13[IKE] ignoring fourth Quick Mode message

Connecting

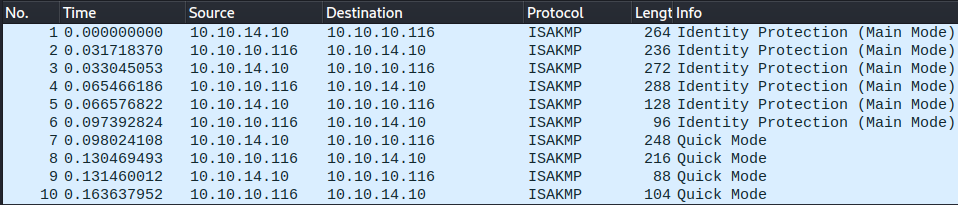

As shown in Wireshark, the connection is initialized and established over ISAKMP

┌──(kali㉿kali)-[~/archive/htb/labs/conceal]
└─$ echo 'This is a testing packet' | nc $IP 80

Now when I send out a packet to the target host

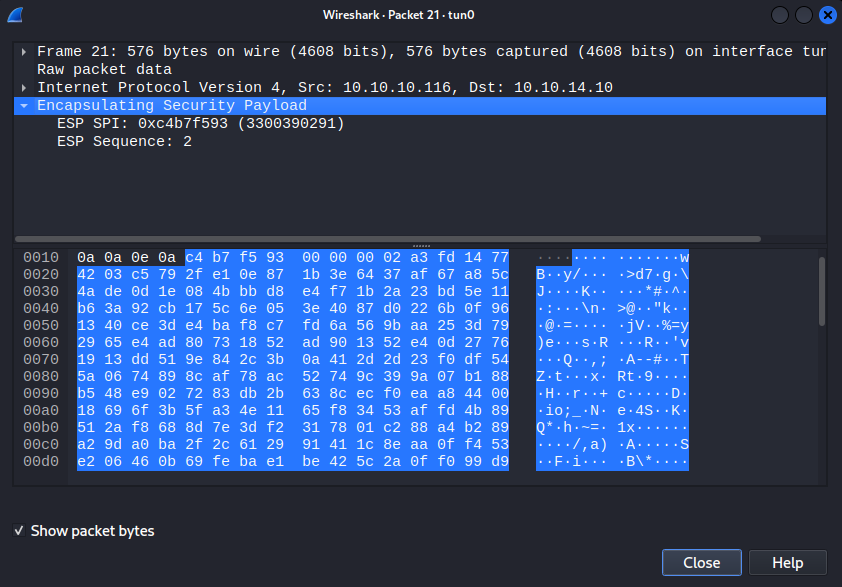

IPsec uses ESP(Encapsulating Security Payload), and payload gets all encrypted

Now that the VPN connection is established, I should be able to reach those services that I could not reach
