Malicious Project

I previously have confirmed the command execution via creating a malicious project on the target Jenkins instance Here, I will first attempt to gain a foothold to the target system

Firewall

I made a several attempts to transfer necessary files to get a foothold via reverse shell, but none of them worked out

  • It would appear that the target system is UNABLE to locate the Kali host from the inside
  • This raises a speculation that there might be a firewall configured for outbound packets

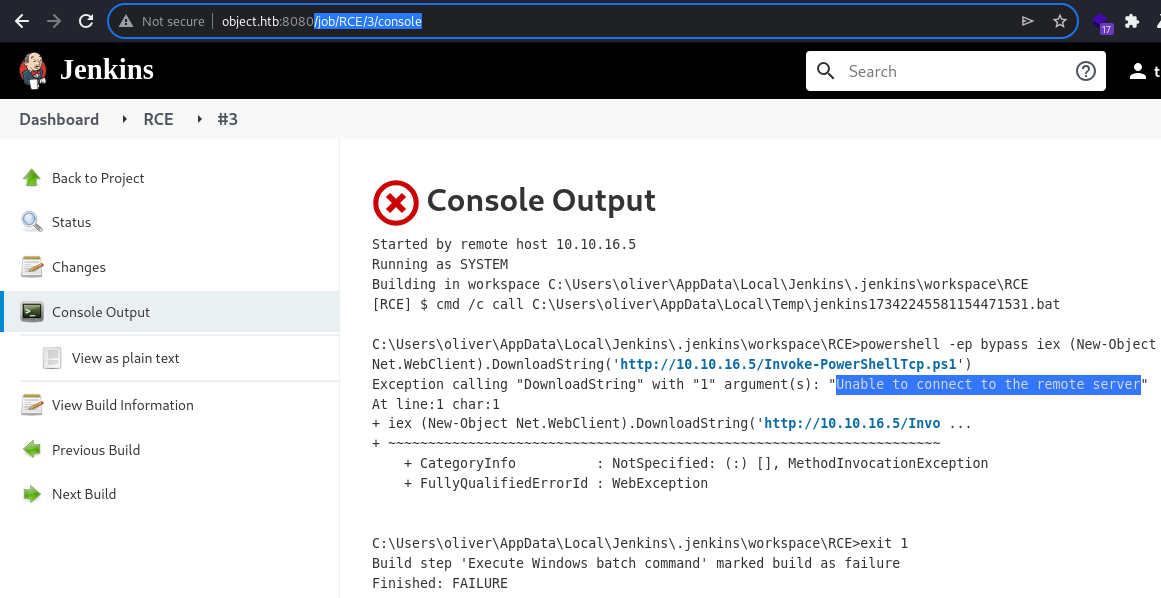

Invoke—PowerShellTCP.ps1 via HTTP

As shown above, the error message indicates that the target system is unable to connect to the remote host Additionally, nothing came through on my end

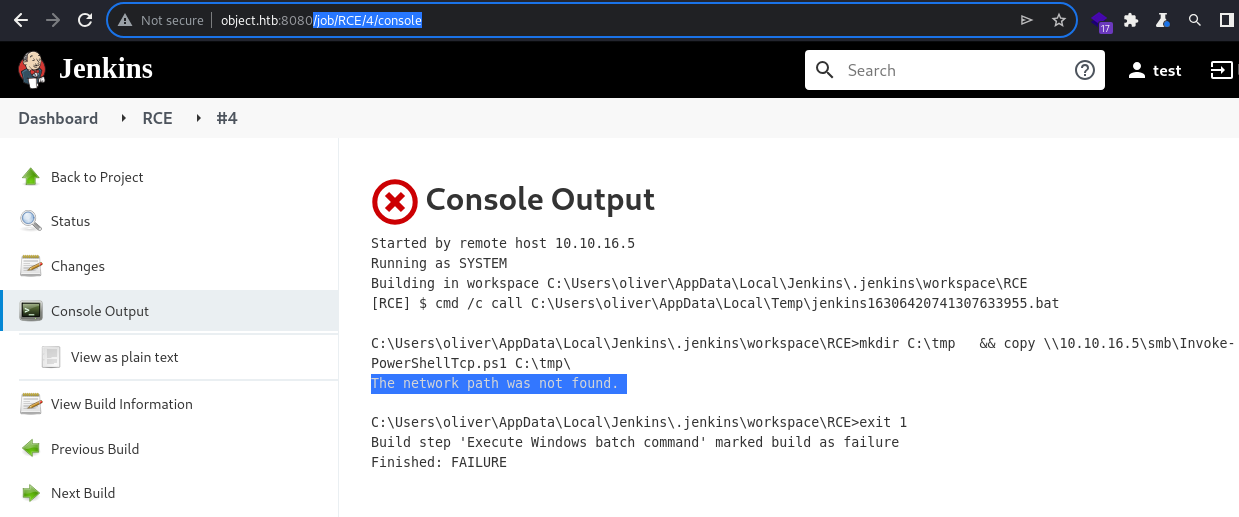

SMB

The very same result can be seen when attempting to transfer a file via SMB

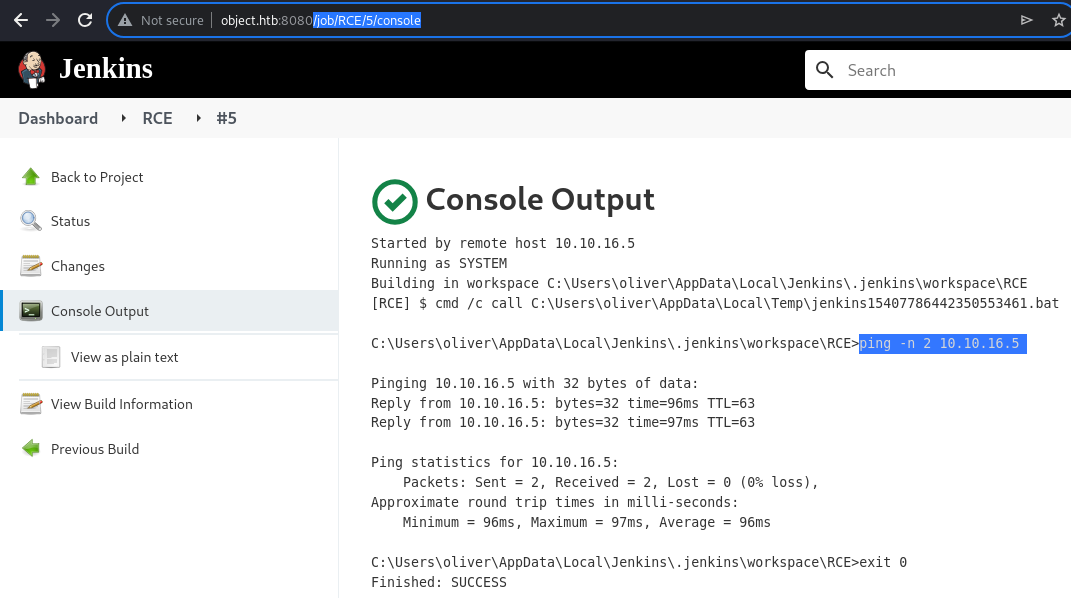

Ping

┌──(kali㉿kali)-[~/archive/htb/labs/object]
└─$ sudo tcpdump -i tun0 icmp -vv
tcpdump: listening on tun0, link-type RAW (Raw IP), snapshot length 262144 bytes
17:26:44.614860 IP (tos 0x0, ttl 127, id 41031, offset 0, flags [none], proto ICMP (1), length 60)
    object.htb > 10.10.16.5: ICMP echo request, id 1, seq 11274, length 40
17:26:44.614874 IP (tos 0x0, ttl 64, id 18443, offset 0, flags [none], proto ICMP (1), length 60)
    10.10.16.5 > object.htb: ICMP echo reply, id 1, seq 11274, length 40
17:26:45.521184 IP (tos 0x0, ttl 127, id 41032, offset 0, flags [none], proto ICMP (1), length 60)
    object.htb > 10.10.16.5: ICMP echo request, id 1, seq 11277, length 40
17:26:45.521200 IP (tos 0x0, ttl 64, id 18489, offset 0, flags [none], proto ICMP (1), length 60)
    10.10.16.5 > object.htb: ICMP echo reply, id 1, seq 11277, length 40

However, ping came through

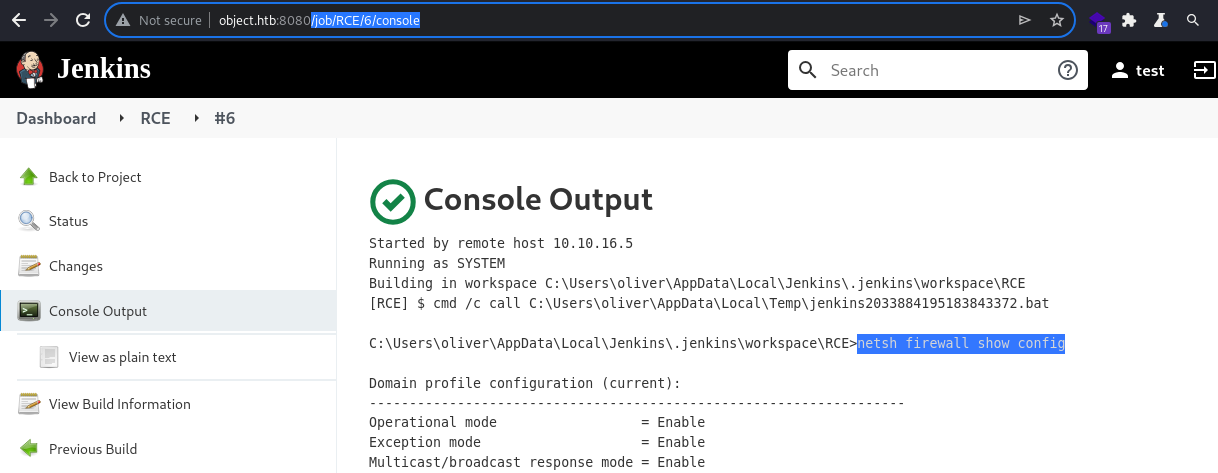

Firewall Config

C:\Users\oliver\AppData\Local\Jenkins\.jenkins\workspace\RCE> netsh firewall show config

Domain profile configuration (current):
-------------------------------------------------------------------
Operational mode                  = Enable
Exception mode                    = Enable
Multicast/broadcast response mode = Enable
Notification mode                 = Disable

Service configuration for Domain profile:
Mode     Customized  Name
-------------------------------------------------------------------
Enable   No          File and Printer Sharing

Allowed programs configuration for Domain profile:
Mode     Traffic direction    Name / Program
-------------------------------------------------------------------
Enable   Inbound              Remote Mouse Core / C:\Program Files (x86)\Remote Mouse\RemoteMouseCore.exe
Enable   Inbound              Remote Mouse / C:\Program Files (x86)\Remote Mouse\RemoteMouse.exe

Port configuration for Domain profile:
Port   Protocol  Mode    Traffic direction     Name
-------------------------------------------------------------------

Standard profile configuration:
-------------------------------------------------------------------
Operational mode                  = Enable
Exception mode                    = Enable
Multicast/broadcast response mode = Enable
Notification mode                 = Disable

Service configuration for Standard profile:
Mode     Customized  Name
-------------------------------------------------------------------
Enable   No          File and Printer Sharing
Enable   Yes         Network Discovery

Allowed programs configuration for Standard profile:
Mode     Traffic direction    Name / Program
-------------------------------------------------------------------

Port configuration for Standard profile:
Port   Protocol  Mode    Traffic direction     Name
-------------------------------------------------------------------

Log configuration:
-------------------------------------------------------------------
File location   = C:\Windows\system32\LogFiles\Firewall\pfirewall.log
Max file size   = 4096 KB
Dropped packets = Disable
Connections     = Disable

IMPORTANT: Command executed successfully.
However, "netsh firewall" is deprecated;
use "netsh advfirewall firewall" instead.
For more information on using "netsh advfirewall firewall" commands
instead of "netsh firewall", see KB article 947709
at https://go.microsoft.com/fwlink/?linkid=121488 .

Firewall is definitely enabled and there is only a single irrelevant rule configured for an inbound connection

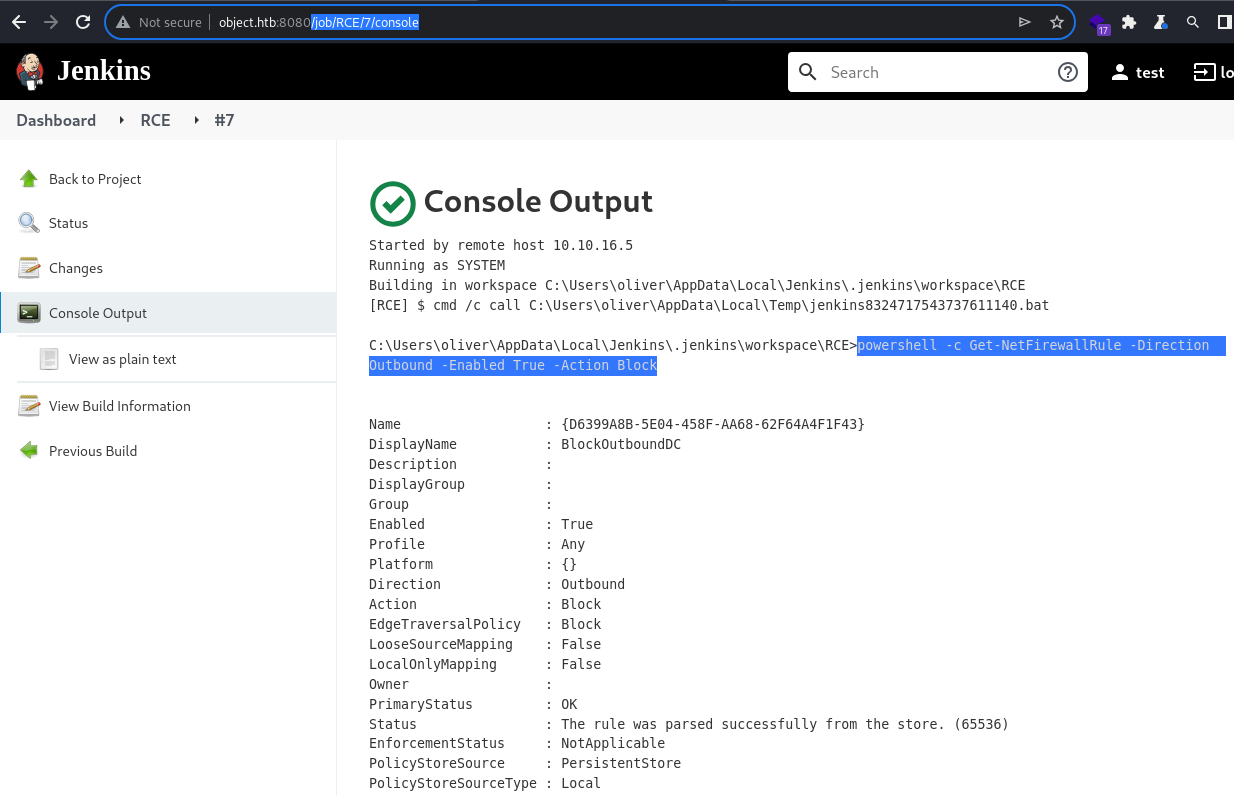

BlockOutboundDC

Looking further into it indeed reveals a rule named, BlockOutboundDC

This would mean that I would have to enumerate the target system through the Build
